Description

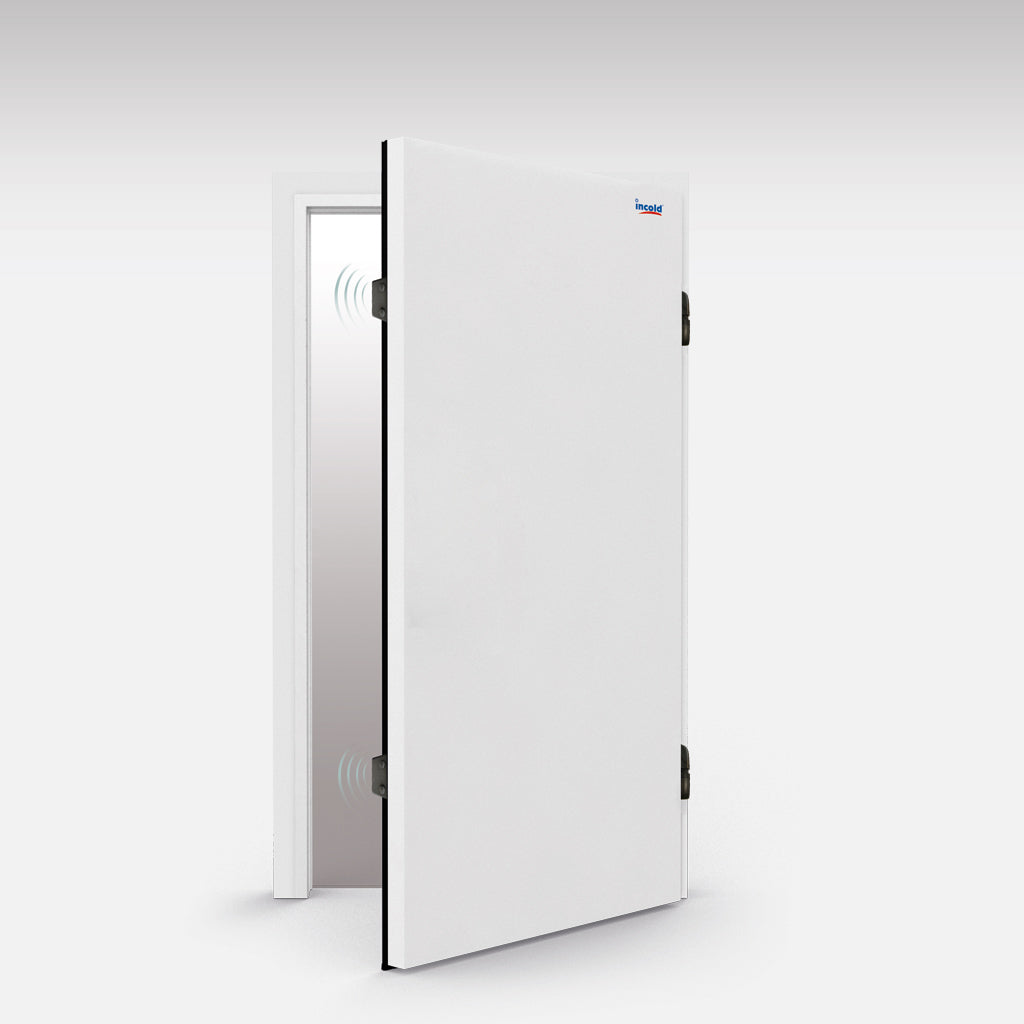

The CE-MG is Incold's CE-series hinged isothermal door with a magnetic gasket closing system. The leaf is built from moulded plates with an integrated handgrip, injected rigid polyurethane insulation and a magnetic EPDM gasket that draws the door shut against its frame for a consistent thermal seal.
It is made in three panel thicknesses — 68 mm (CE-MG 07 TN) for chilled rooms, and 92 mm (CE-MG 09 BT) or 121 mm (CE-MG 12 BT) for freezer rooms — across clear openings from 700 by 2000 mm up to 1200 by 2200 mm. The leaf opens to 180 degrees and is self-closing up to 90 degrees. A heating element is available on the low-temperature versions.
The frame is a reinforced plastic profile with internal steel and stainless steel panel-fixing connectors. Leaf finishes are PR prepainted steel in RAL 9010, IX AISI 304 stainless steel, PX plasticized stainless steel, and Incold Zero antibacterial PVC. Double-glazed portholes and key locks are available.
Sizes and configurations are made to order. Add this model to your enquiry list and state the clear opening you need, the operating temperature and any options, and Vitrum will come back to you with a quotation.
Specifications
Specifications
Physical dimensions
- External dimensions (W×D×H)
- Clear opening from 700 x 2000 mm to 1200 x 2200 mm mm
Construction & design
- Mounting type
- Hinged, magnetic gasket, self-closing to 90 degrees
Materials & finish
- Exterior finish
- Leaf finishes: PR prepainted steel RAL 9010, IX AISI 304 stainless steel, PX plasticized stainless steel, Incold Zero antibacterial PVC
Product details
- Product line
- Doorsystem
- Intended use
- Chiller and freezer cold rooms (positive and negative temperature)
- Custom sizes available
- Yes - made to order in 68, 92 and 121 mm panel thicknesses
Delivery
Delivery
Origin & customs
- Country of manufacture
- Italy
- Manufacturer code
- CE-MG
Documents & Certificates
Documents & Certificates
Documents
- Catalogue
- View Opens in a new window.
