Description

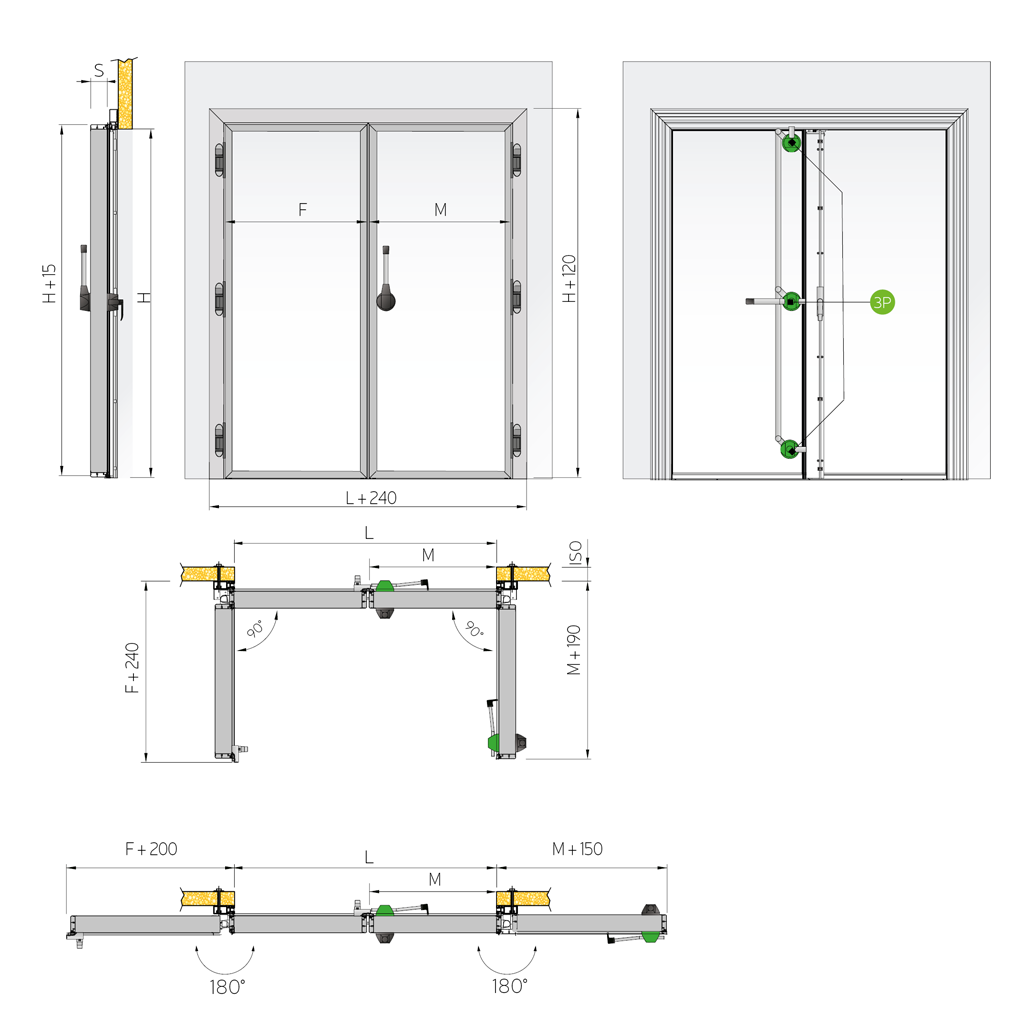

The CE2B is a two-leaf hinged isothermal door for wide openings where a single leaf would be unwieldy. Each leaf is built from prepainted white RAL 9010 steel facings framed by an anodised aluminium profile, with rigid polyurethane foam injected inside to form the insulation.
A special rubber gasket is housed along the anodised aluminium edge to guarantee the thermal seal, and the semi-fixed leaf carries a central closing profile that keeps the gasket sealed in the closed position.
Clear openings run from 1400 by 2000 mm up to 1800 by 2200 mm and beyond, in chilled and freezer versions.
Sizes and configurations are made to order. Add this model to your enquiry list and state the clear opening you need, the operating temperature and any options, and Vitrum will come back to you with a quotation.
Specifications
Specifications
Physical dimensions
- External dimensions (W×D×H)
- Clear opening from 1400 x 2000 mm to 1800 x 2200 mm and above mm
Construction & design
- Mounting type
- Hinged, two leaves
Materials & finish
- Material
- Prepainted steel facings RAL 9010, anodised aluminium frame, injected rigid polyurethane core
- Exterior finish
- Leaf finishes: PR prepainted steel RAL 9010, PL plasticized steel RAL 9010, IX AISI stainless steel, PX plasticized stainless steel
Product details
- Product line
- Doorsystem
- Custom sizes available
- Yes - made to order, chilled and freezer versions
Delivery
Delivery
Origin & customs
- Country of manufacture
- Italy
- Manufacturer code
- CE2B
Documents & Certificates
Documents & Certificates
Documents
- Catalogue
- View Opens in a new window.
