Description

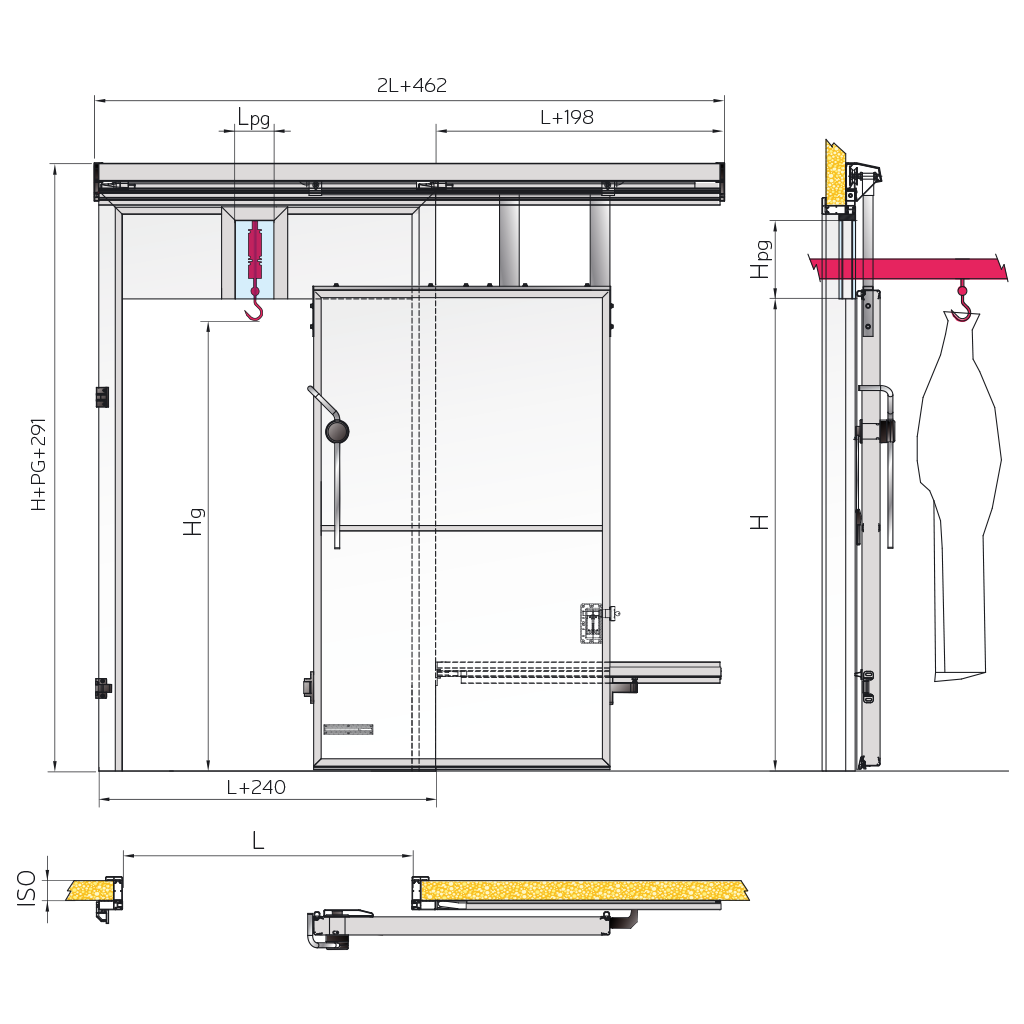

The SC 09 TNG is an isothermal sliding door with a rail passage, for cold rooms served by an overhead track where carcasses or loads are moved on a suspended rail through the doorway. The rail passage is sealed so the thermal barrier is maintained where the track crosses the opening.
It is built on the 9 cm panel and is supplied for positive temperature rooms only.
A porthole is available on the chilled version, and a key lock can be fitted.
Sizes and configurations are made to order. Add this model to your enquiry list and state the clear opening you need, the operating temperature and any options, and Vitrum will come back to you with a quotation.
Specifications
Specifications
Construction & design
- Mounting type
- Sliding with rail passage
Materials & finish
- Exterior finish
- Leaf finishes: PR prepainted steel RAL 9010, PL plasticized steel RAL 9010, IX AISI stainless steel, PX plasticized stainless steel
Product details
- Product line
- Doorsystem
- Intended use
- Positive temperature rooms only
- Custom sizes available
- Yes - made to order on the 9 cm panel
Accessories & contents
- Optional accessories
- Porthole (chilled version only); key lock
Delivery
Delivery
Origin & customs
- Country of manufacture
- Italy
- Manufacturer code
- SC 09 TNG (WITH RAIL PASSAGE)
Documents & Certificates
Documents & Certificates
Documents
- Catalogue
- View Opens in a new window.
