Description

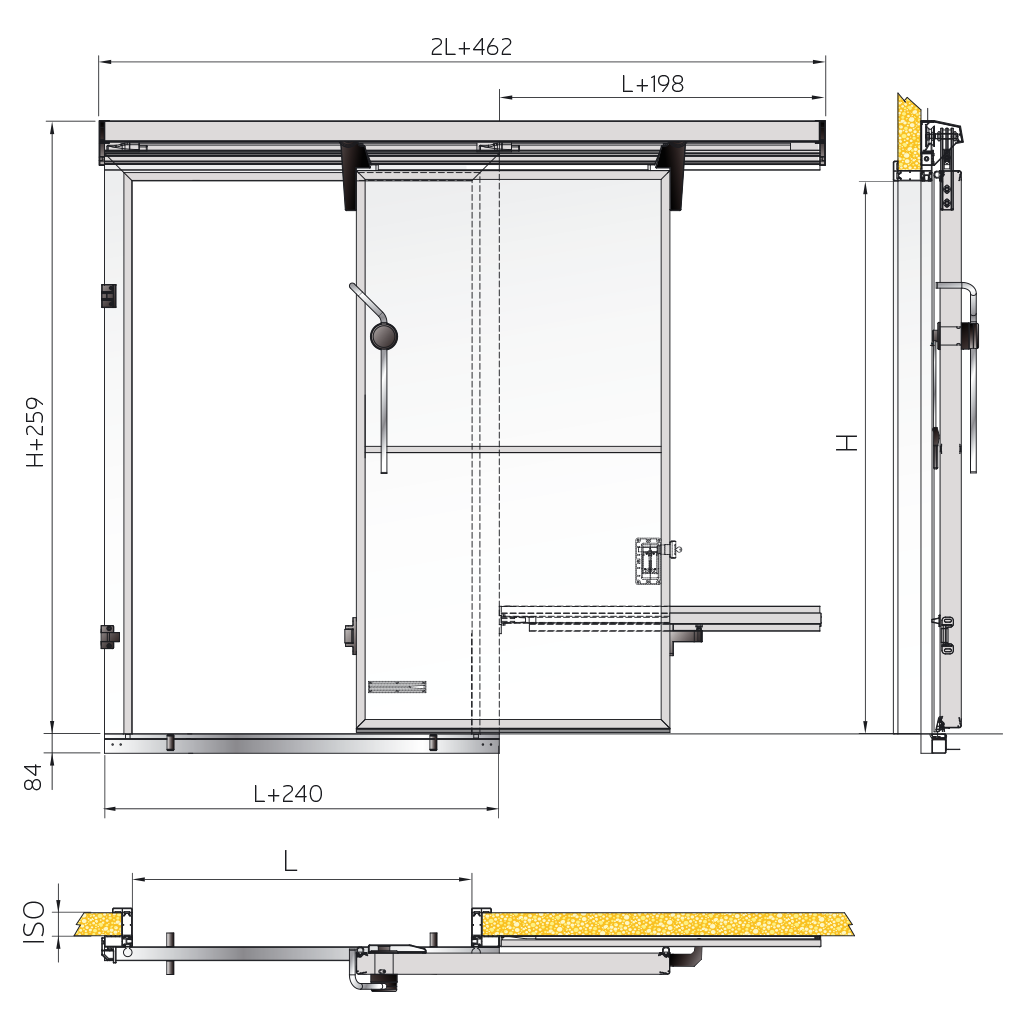

The SC is Incold's standard isothermal sliding door, used where there is no room for a leaf to swing or where traffic makes a sliding leaf more practical. The leaf runs on an anodised aluminium sliding rail fitted with a white painted aluminium cover.
It is made in 7, 9 and 12 cm panel thicknesses across chilled and freezer versions, designated SC 07 TN, SC 09 TN, SC 09 BT and SC 12 BT, with clear openings from 800 by 2000 mm up to 1300 by 2200 mm and beyond.
The door is manufactured to EN 13241-1 and can be supplied manual or automatic.
Sizes and configurations are made to order. Add this model to your enquiry list and state the clear opening you need, the operating temperature and any options, and Vitrum will come back to you with a quotation.
Specifications
Specifications
Physical dimensions
- External dimensions (W×D×H)
- Clear opening from 800 x 2000 mm to 1300 x 2200 mm and above mm
Construction & design
- Mounting type
- Sliding, manual or automatic
Materials & finish
- Exterior finish
- Leaf finishes: PR prepainted steel RAL 9010, PL plasticized steel RAL 9010, IX AISI stainless steel, PX plasticized stainless steel
Product details
- Product line
- Doorsystem
- Custom sizes available
- Yes - made to order in 7, 9 and 12 cm panel thickness
Delivery
Delivery
Origin & customs
- Country of manufacture
- Italy
- Manufacturer code
- SC (PRIME)
Documents & Certificates
Documents & Certificates
Documents
- Catalogue
- View Opens in a new window.
Certifications
- Standard compliance
- EN 13241-1
