Description
The CE-E is Incold's standard hinged isothermal door for cold rooms, built for both chilled and low temperature service. The leaf is a polyurethane-insulated panel framed in anodised aluminium, with a perimeter gasket that holds the thermal seal when the door is closed.
It is made in chilled and freezer versions across a range of clear openings from 700 by 2000 mm up to 1200 by 2200 mm and beyond. A rail passage version, the CE-E TN G, is available where an overhead track has to pass through the doorway.
The door is manufactured to EN 13241-1 and is classified in wind resistance class 4.
Sizes and configurations are made to order. Add this model to your enquiry list and state the clear opening you need, the operating temperature and any options, and Vitrum will come back to you with a quotation.
Specifications
Specifications
Physical dimensions
- External dimensions (W×D×H)

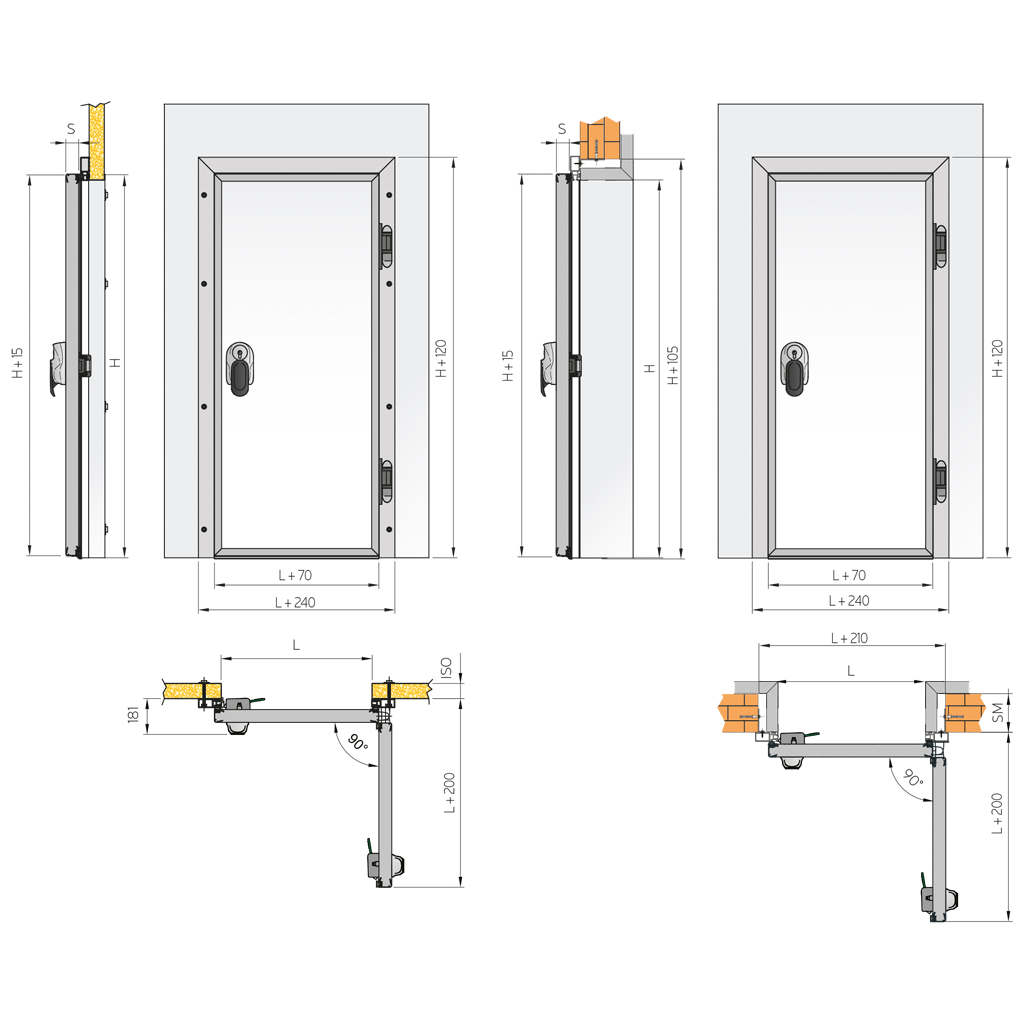

- Clear opening from 700 x 2000 mm to 1200 x 2200 mm and above mm
Construction & design
- Mounting type
- Hinged
Materials & finish
- Exterior finish
- Leaf finishes: PR prepainted steel RAL 9010, PL plasticized steel RAL 9010, IX AISI stainless steel, PX plasticized stainless steel
Product details
- Product line
- Doorsystem
- Custom sizes available
- Yes - made to order, chilled and freezer versions, rail passage option
Delivery
Delivery
Origin & customs
- Country of manufacture
- Italy
- Manufacturer code
- CE E
Documents & Certificates
Documents & Certificates
Documents
- Catalogue
- View Opens in a new window.
Certifications
- Standard compliance
- EN 13241-1, wind resistance class 4
