Description

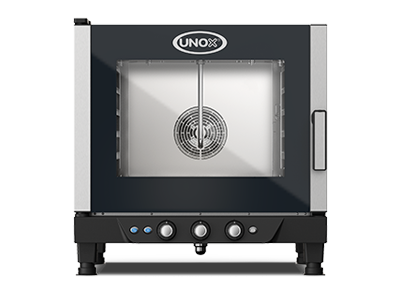

The Unox CHEFLUX™ MANUAL XV393 is a commercial convection oven with humidity for restaurants, hotels, bakeries and catering operations, accommodating 5 × GN 1/1 trays and running at 7.1 kW. Analog knob controls keep operation straightforward for busy kitchen teams, while the cooking range spans 30 °C to 260 °C with humidity available from 48 °C upward.
AIR.Plus dual-speed fans with reversing gear ensure even heat distribution across all five tray positions, while STEAM.Plus enables manual humidity injection and DRY.Plus extracts moisture rapidly for crispier results. Protek.SAFE™ technology keeps door glass and external surfaces cool during service, and the double-glass door docks at 60°, 120° and 180° — reversible after installation for flexible kitchen layouts.
The rounded AISI 304 stainless steel interior with LED door lighting and anti-tip tray supports makes daily cleaning and safe loading straightforward. A residual-time display and continuous (INF) cooking mode add practical control for high-volume operations.
Specifications
Specifications
Physical dimensions
- External dimensions (W×D×H)
- 750 x 773 x 772 mm
- Tray pitch
- 67 mm
- Net weight
- 67 kg
Energy & electrical
- Energy source
- Electric
- Electric power
- 7.1 kW
- Voltage / frequency
- 380-415 V 3N~ / 220-240 V 3~ / 220-240 V 1~, 50/60 Hz
Construction & design
- Device type
- Convection oven with humidity
- Control type
- Manual knob control
- Doors
- Single door, hinged left
- GN size
- GN 1/1
- GN capacity
- 5 x GN 1/1
- Interior lighting
- LED
Materials & finish
- Material
- AISI 304 stainless steel
Cooking & heating
- Min cooking temperature
- 80°C
- Max cooking temperature
- 260°C
- Cooking modes
- Convection; convection with humidity; steam-assisted (AIR.Plus, STEAM.Plus, DRY.Plus)
Product details
- Product line
- CHEFLUX
Delivery
Delivery
Logistics & shipping
- Dispatch
- 4–6 weeks
- Collect from our Riga store
- Ready within 4–6 weeks
Origin & customs
- Country of origin
- Italy
Documents & Certificates
Documents & Certificates
Documents
- Catalogue
- Download (PDF) Opens in a new window.
