Description

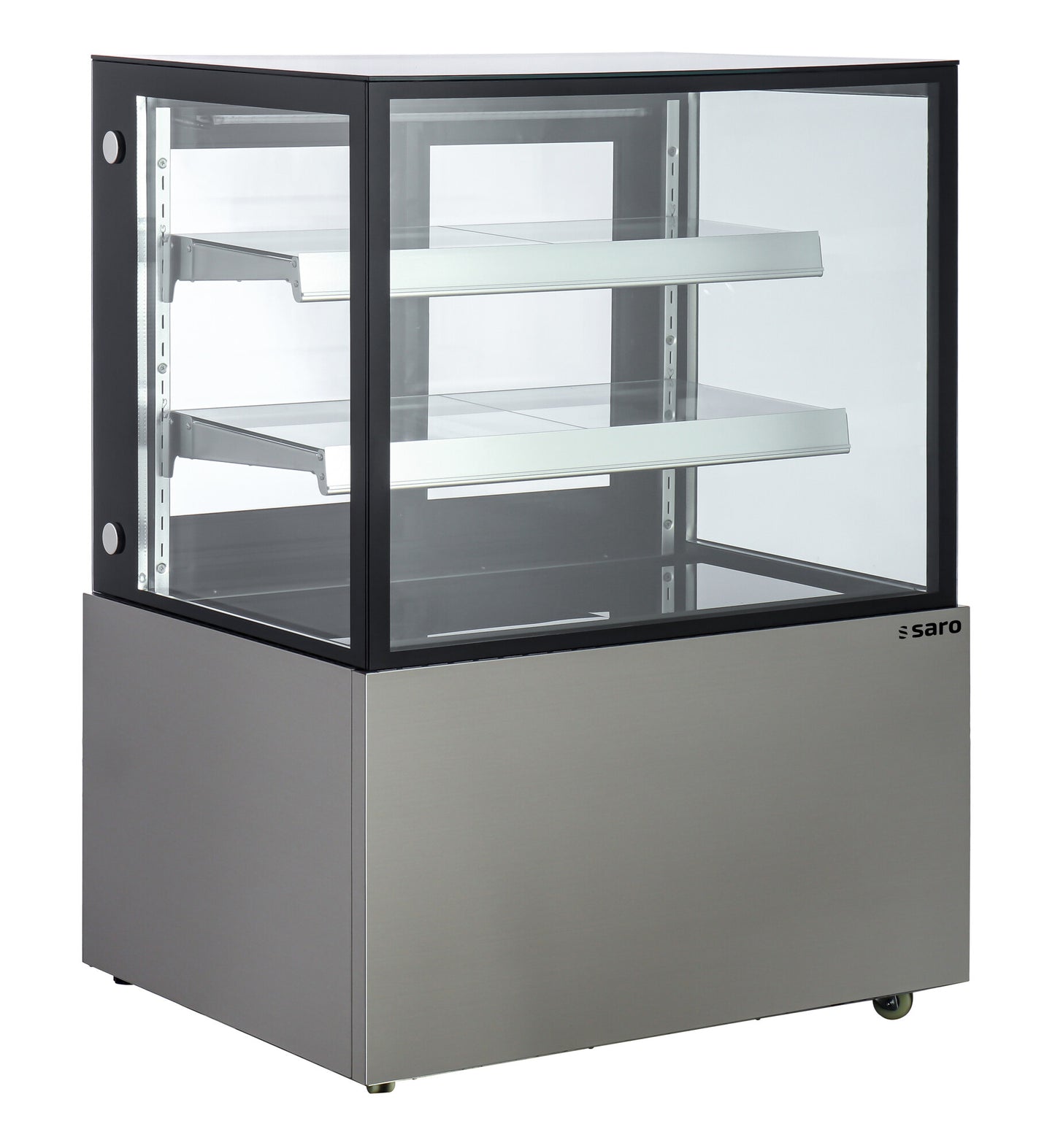

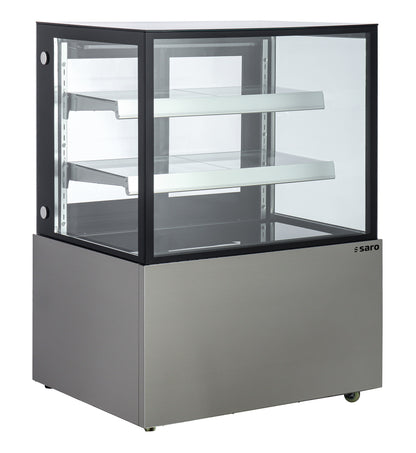

The Saro JASMIN AV is a stainless steel cake display cabinet for cafes, bakeries, patisseries, hotels, buffet areas and retail environments, with a 300 litre gross capacity (169.8 litres net) across two height-adjustable glass shelves. The top shelf measures 770 x 311 mm and the bottom shelf 770 x 371 mm, both lit by four separately switchable LED strips. Double glazing covers all four sides, and a 2-part sliding door at the back keeps service away from the customer-facing glass.
Digital temperature control, forced-air cooling and automatic defrost hold +2 to +8 °C, on a 230 V, 50 Hz, 0.470 kW connection with R290 refrigerant. Internal dimensions are 840 x 585 x 640 mm and external dimensions 900 x 680 x 1200 mm including the four castors, two of which brake; net weight is 127 kg.
Specifications
Specifications
Physical dimensions
- External dimensions (W×D×H)
- 900 x 680 x 1200 mm
- Internal dimensions (W×D×H)
- 840 x 585 x 640 mm
- Shelf dimensions
- Top 770 x 311, bottom 770 x 371 mm
- Volume
- 300 L
- Net weight
- 127 kg
Temperature & refrigeration
- Min temperature
- 2°C
- Max temperature
- 8°C
- Refrigerant
- R290
- Cooling type
- Forced-air cooling
- Defrost type
- Automatic
Energy & electrical
- Electric power
- 0.470 kW
- Voltage / frequency
- 230 V / 50 Hz

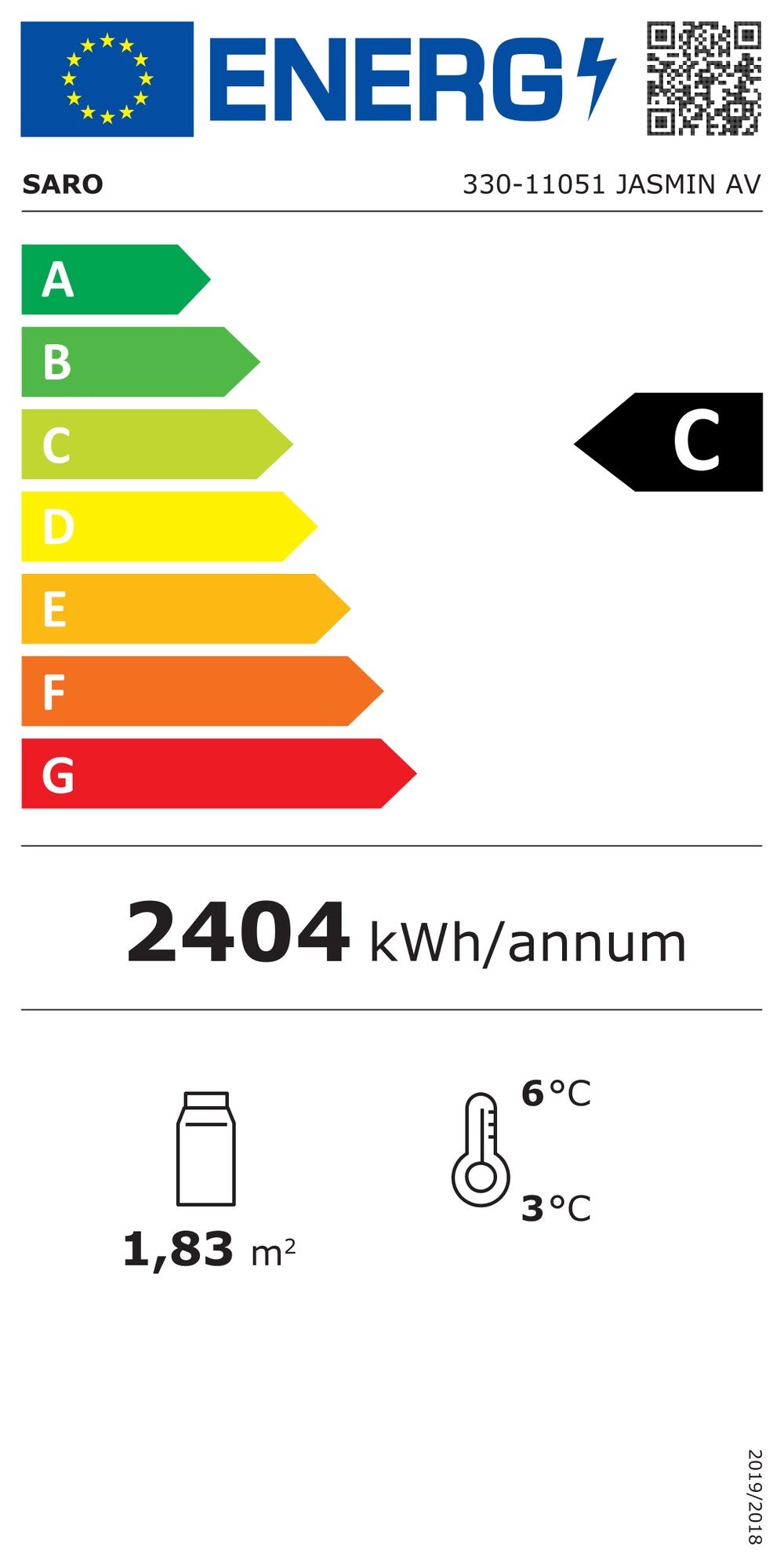

- Energy class
- C
Construction & design
- Device type
- Cake display cabinet
- Construction type
- Double glazing on 4 sides, 2-part sliding door at the back
- Control type
- Digital temperature control
- Doors
- 2-part sliding door, rear
- Shelves
- 2 height-adjustable glass shelves
- Castors
- 4 castors, 2 with brakes
- Interior lighting
- 4x LED, separately switchable
Materials & finish
- Material
- Stainless steel housing
Product details
- Intended use
- Chilled display of cakes, gateaux, desserts and pastries in cafes, bakeries, patisseries, hotels, buffet areas and retail environments
Warranty
Warranty
- Warranty period (months)
- 24 months
Delivery
Delivery
Logistics & shipping
- Gross weight
- 155 kg
Origin & customs
- Country of origin
- CN
- Customs tariff number
- 8418501990
- EAN
- 4017337072811
