Cubigel Condensing Unit CNPT14RA4N, R290, 1/2 hp

The Cubigel CNPT14RA4N is a complete R290 condensing unit: the compressor, air-cooled condenser, fan and electrics assembled on one base plate, ready to be piped to an evaporator. It is what a refrigeration engineer replaces when the cooling half of a commercial counter, cabinet or display case has failed, and it is one of the units Vitrum fits inside its own refrigerated furniture.

Cooling capacity is 1229 W at 32 °C ambient and 984 W at 43 °C, measured to EN 13125 at a -10 °C evaporating temperature, from a 14.32 cm³ compressor drawing 596 W for a COP of 2.06. The unit measures 435 x 510 x 305 mm and weighs 29.00 kg, with 3/8 inch suction and 3/8 inch discharge connections. It is rated high back pressure, meaning chilled applications.

This is a version 4 build: the basic unit for capillary-expansion systems, joined by brazing to the condenser tubes, with a Schrader valve added on the refrigerant charging port. It carries no service valves and no liquid receiver. The tropicalized fan-cooled condenser is rated for ambient temperatures up to 43 °C, and the unit meets the ecodesign requirements of Commission Regulation (EU) 2015/1095.

R290 (propane) has a global warming potential of 3 and contains no fluorine, so it sits outside the EU F-gas phase-down entirely. It is also flammable, safety class A3, which is why installation, charging and service belong to a qualified refrigeration technician.

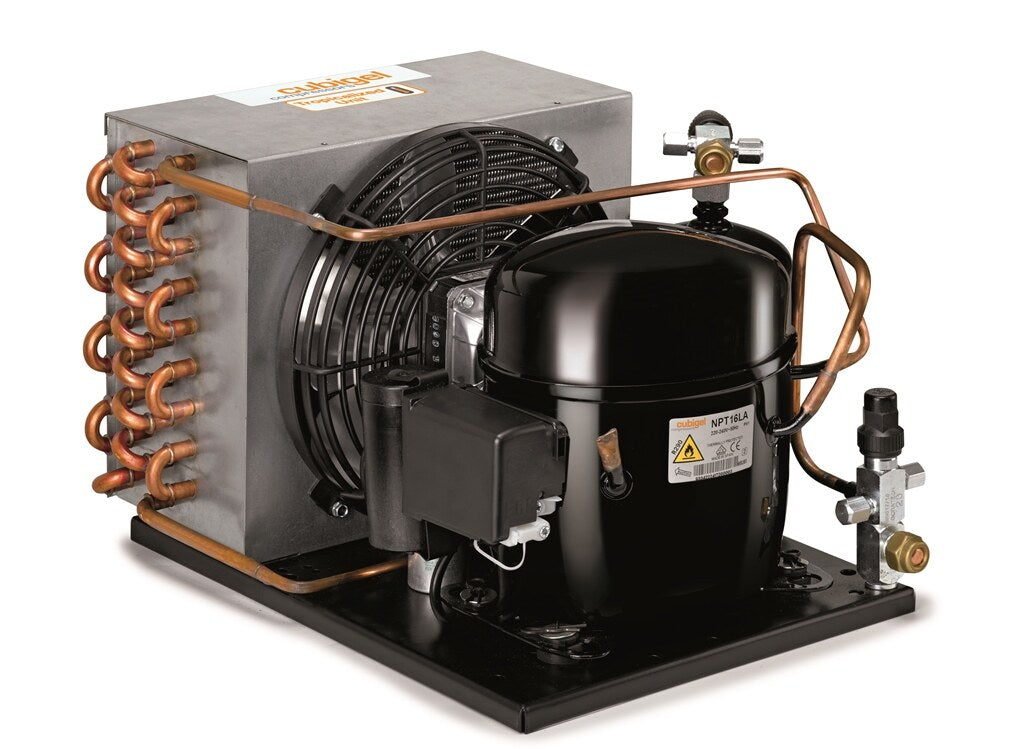

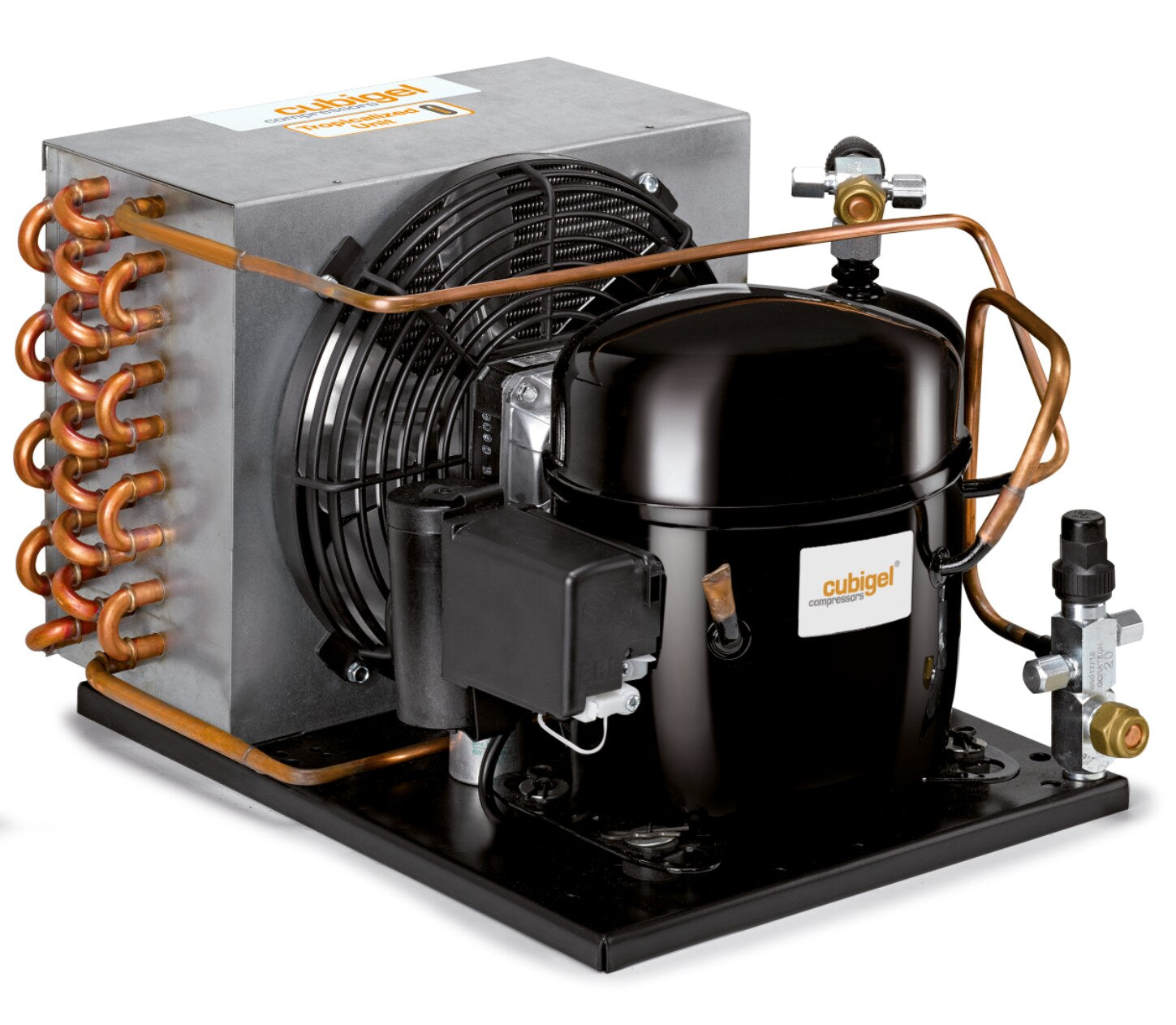

Cubigel Compressors is the brand of Huayi Compressor Barcelona. The photograph shows a Cubigel unit from the same platform: the supplier has confirmed it does not hold photographs of every individual model, so the exact assembly may differ in detail.
