Description

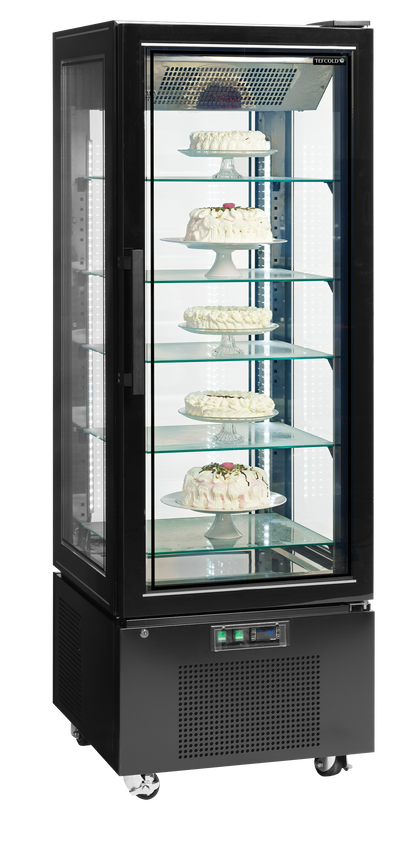

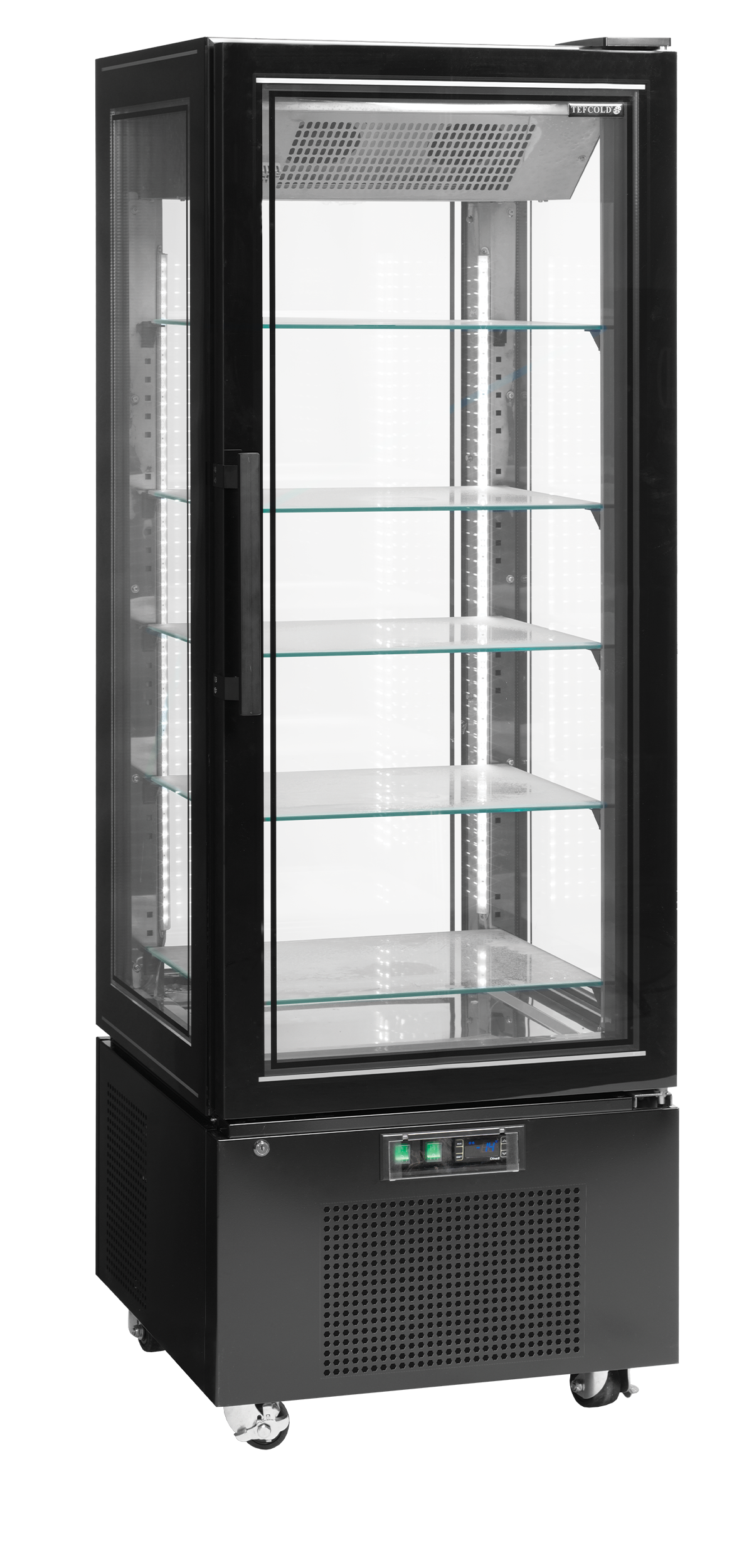

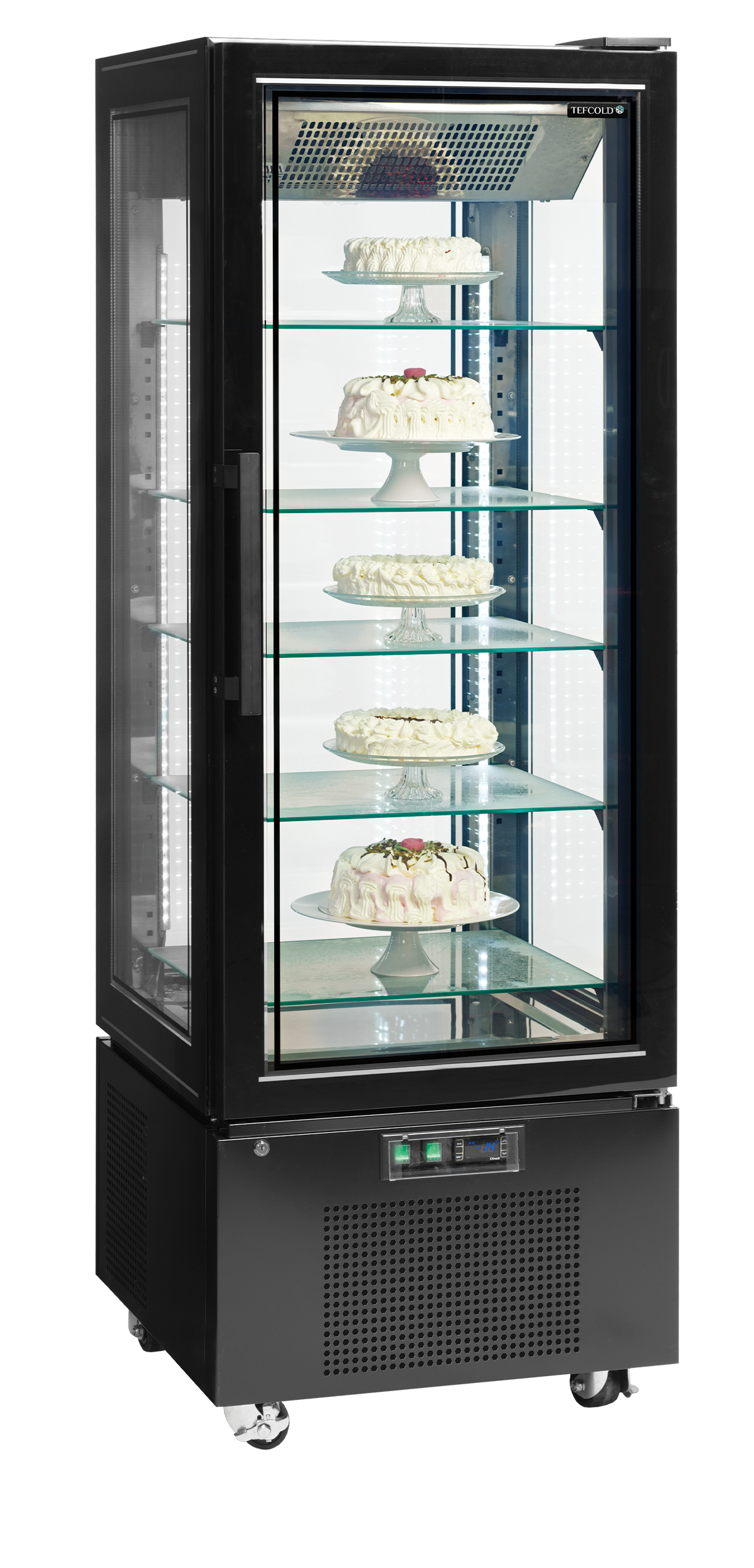

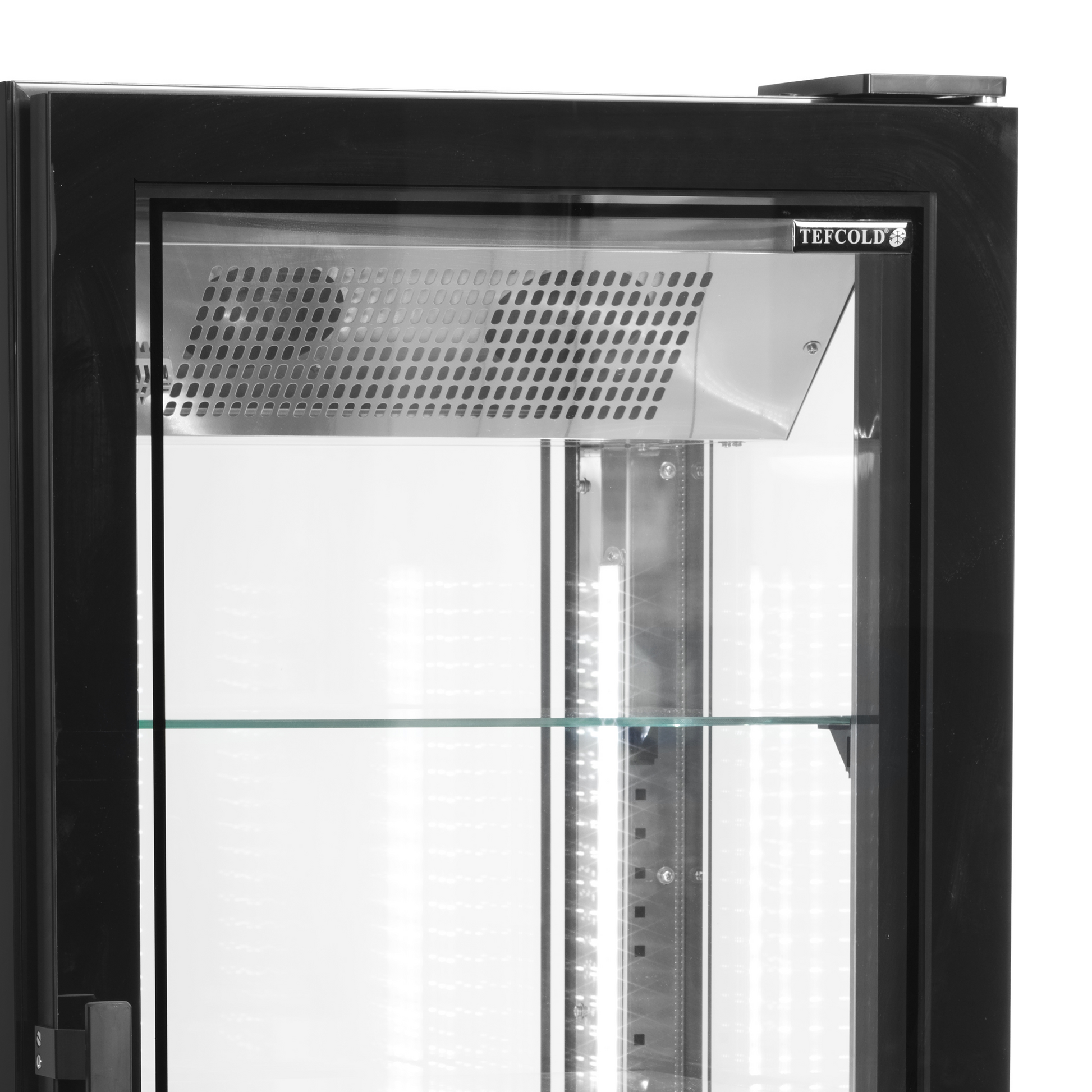

The freezer version of the UPD400 keeps frozen desserts on show at -22/-18°C behind double glazed glass on every side, with a heated frameless glass door that resists misting and fogging so the display stays clear through service. The mirror-effect stainless steel interior lifts the display and LED lighting keeps colours sharp even at freezer temperatures.

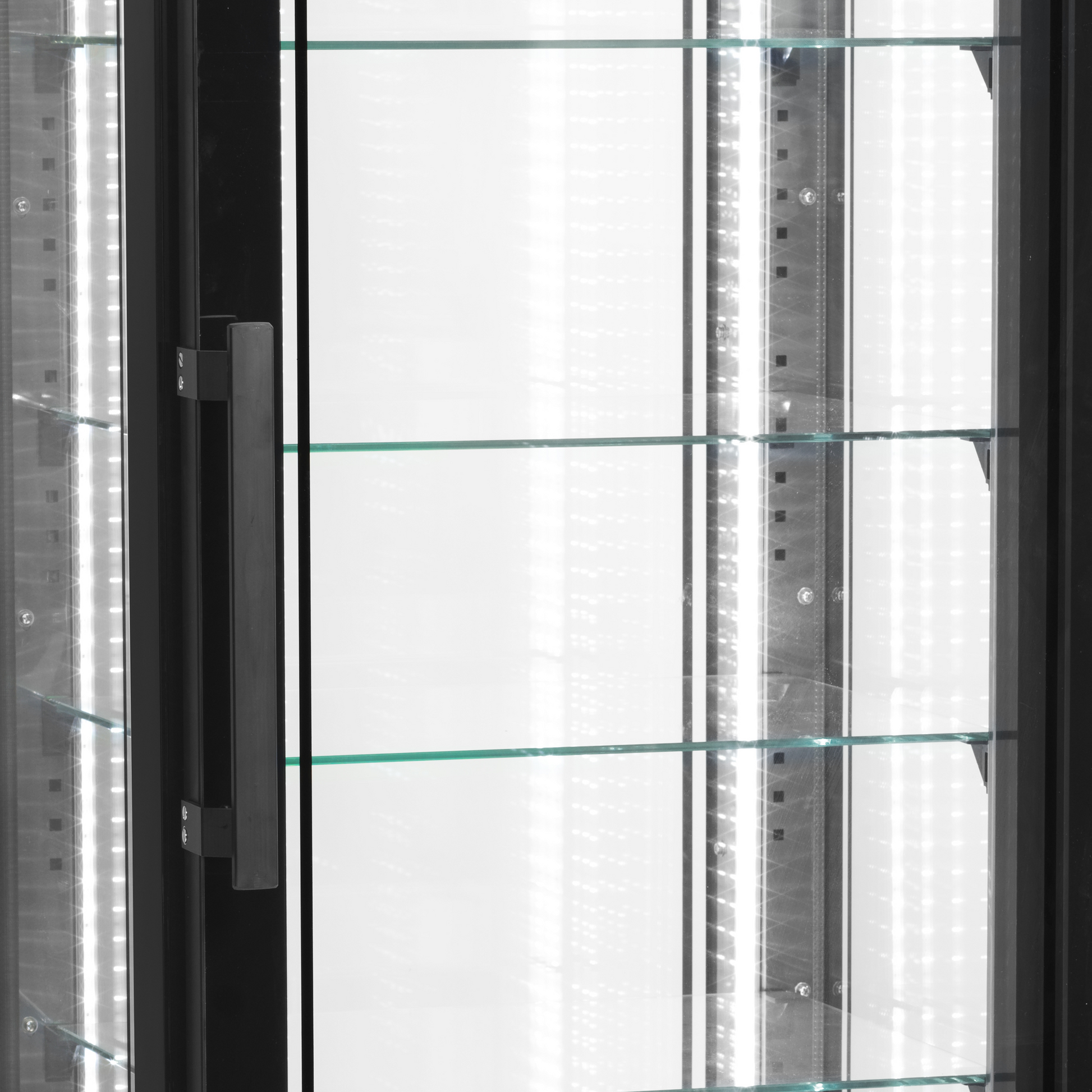

Five adjustable glass shelves let staff rearrange stock as it moves, and the black steel exterior matches the cooling UPD400-C for a consistent look where both sit side by side. Automatic defrost and an electronic controller keep the cabinet running unattended through a full trading day.
Specifications
Specifications
Physical dimensions
- External dimensions (W×D×H)
- 650 x 650 x 1950 mm
- Internal dimensions (W×D×H)
- 588 x 516 x 1200 mm
- Packed dimensions (W×D×H)
- 720 x 720 x 2030 mm
- Shelf dimensions
- 530 x 417 mm
- Volume
- 248 L
- Net weight
- 203 kg
Temperature & refrigeration
- Min temperature
- -22°C
- Max temperature
- -18°C
- Refrigerant
- R290
- Refrigerant charge
- 0.15 kg
- Defrost type
- Automatic
- Climate class
- 4
Energy & electrical
- Electric power
- 1.00 kW
- Electric power
- 1000 W
- Voltage / frequency
- 220-240/50
- Energy class
- D
- Energy consumption (24h)
- 23.51 kWh
- Annual energy consumption
- 8582 kWh
- Energy efficiency index
- 47.4
- EPREL number
- 543903
Construction & design
- Device type
- Upright freezer display cabinet
- Control type
- Electronic
- Doors
- 1 hinged heated glass door
- Shelves
- 5 glass shelves + base
- Max shelf load
- 150 kg/m² kg
- Castors
- 4 wheels, 2 with brake
- Interior lighting
- 4 x Vertically LED
- Thermometer
- Yes
- Noise level
- 42 dB
Materials & finish
- Exterior finish
- Black / Glass
- Interior finish
- Stainless steel / Glass
Product details
- Product line
- UPD400
- Intended use
- Floor-standing frozen display of desserts and frozen bakery items
Accessories & contents
- Optional accessories
- 32586, 32599
Delivery
Delivery
Logistics & shipping
- Gross weight
- 225 kg
Origin & customs
- EAN
- 5708181365059
