Description

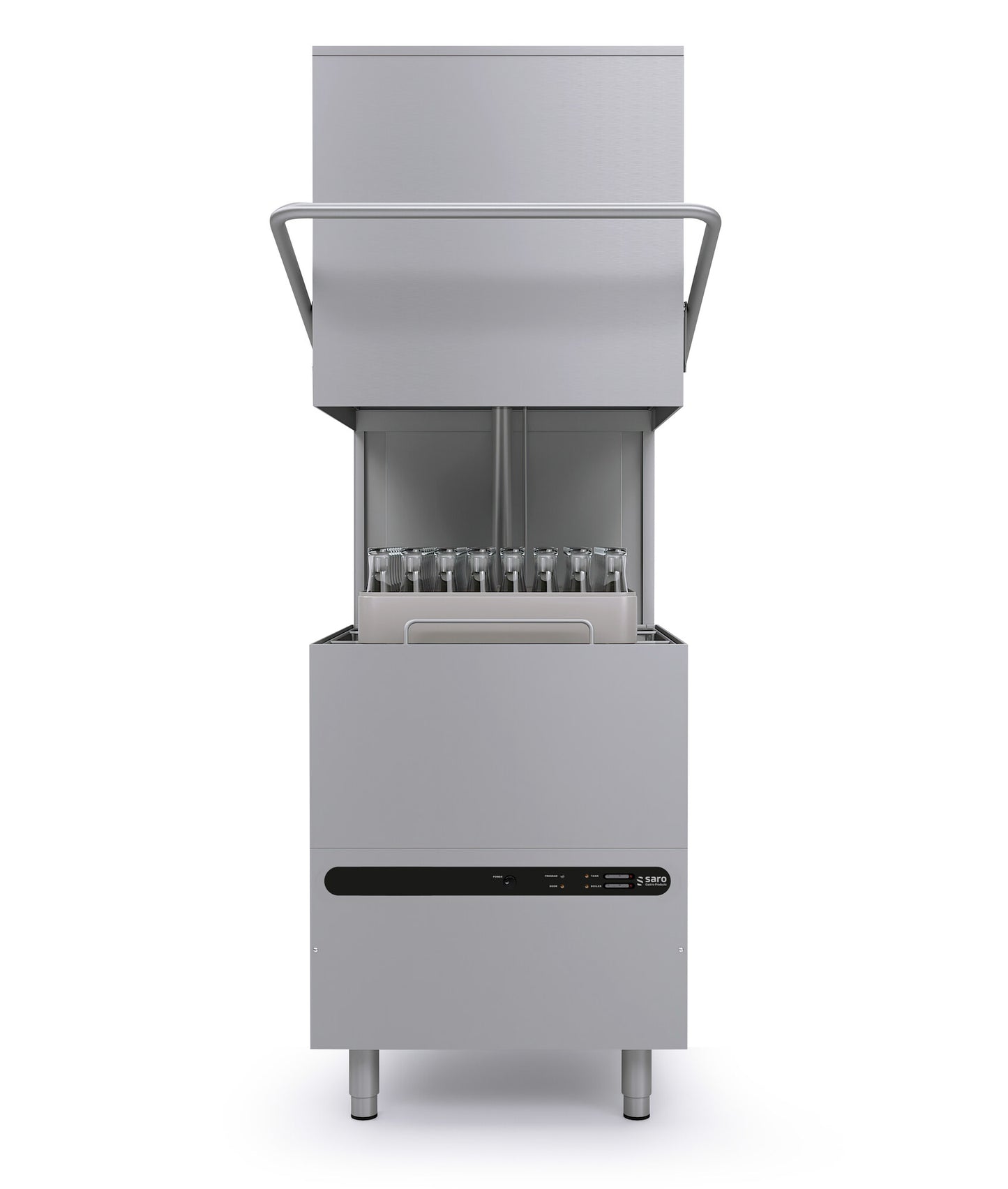

The Saro BERLIN is a hood-type dishwasher for restaurants, hotels, canteens and commercial kitchens with higher volumes of washware. The stainless steel housing and flushing arm sit behind a 400 mm door clearance, and the machine takes a standard 500 x 500 mm dishwasher rack, covering crockery up to 400 mm high and glasses up to 395 mm high. A waterproof IP44 wash pump runs a single 120-second rinse, with a pressure reducer and detergent and rinse aid pumps built in.
The boiler holds 7.4 litres at 85°C with a 7.5 kW element, the tank holds 58 litres at 60°C with a 6 kW element, and the connection is 400 V, 50 Hz, three-phase, at 8.6 kW. External dimensions are 750 x 880 x 1390 mm with the hood closed, rising to 1830 mm open, and net weight is 80 kg.
Specifications
Specifications
Physical dimensions
- External dimensions (W×D×H)
- 750 x 880 x 1390 mm
- Volume
- 58 L
- Net weight
- 80 kg
Temperature & refrigeration
- Min temperature
- 60°C
- Max temperature
- 85°C
Energy & electrical
- Energy source
- Electric
- Electric power
- 8.6 kW
- Voltage / frequency
- 400 V / 50 Hz
Construction & design
- Device type
- Dishwasher, hood type
Materials & finish
- Material
- Stainless steel housing and flushing arm
Cooking & heating
- Protection controls
- Waterproof IP44 wash pump
Product details
- Intended use
- Restaurants, hotels, canteens and commercial kitchens
Warranty
Warranty
- Warranty period (months)
- 24 months
Delivery
Delivery
Logistics & shipping
- Gross weight
- 105 kg
Origin & customs
- Country of origin
- GR
- Customs tariff number
- 84221900
- EAN
- 4017337041978
Documents & Certificates
Documents & Certificates
Documents
- Catalogue
- Download (PDF) Opens in a new window.
Certifications
- Certifications
- CE, RoHS
