Description
The VV-F is a semi-insulating swinging service door. It opens in both directions and closes itself, so staff can move through with full hands and the doorway does not stay open behind them.

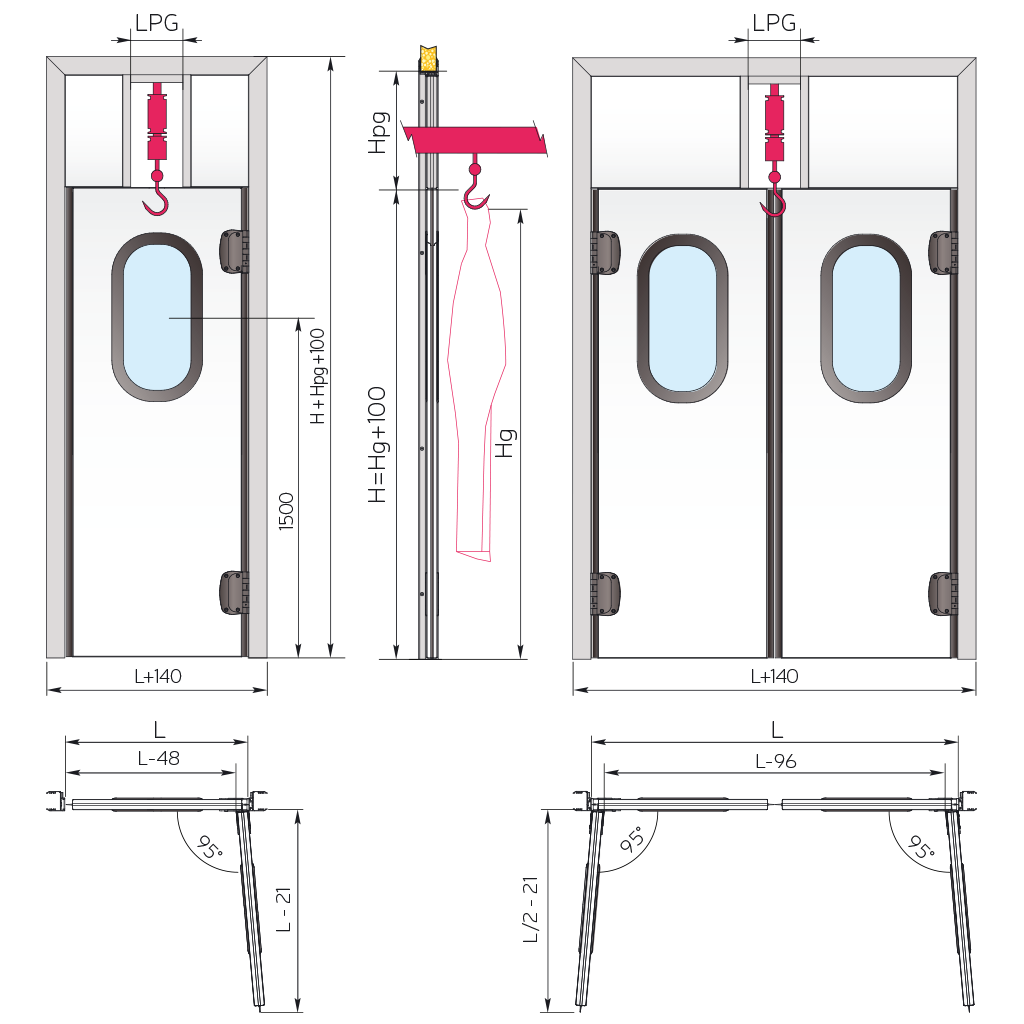

The leaf is 40 mm thick and a window is fitted so people approaching from either side can see through before pushing. Clear openings run from 1000 by 2000 mm up to 1400 by 2200 mm and beyond.
A rail passage version, the VV-FG, is available where an overhead track crosses the doorway. Leaf finishes are PX plasticized stainless steel, IX AISI stainless steel and PL plasticized steel in RAL 9010.
Sizes and configurations are made to order. Add this model to your enquiry list and state the clear opening you need, the operating temperature and any options, and Vitrum will come back to you with a quotation.
Specifications
Specifications
Physical dimensions
- External dimensions (W×D×H)
- Clear opening from 1000 x 2000 mm to 1400 x 2200 mm and above mm
Construction & design
- Mounting type
- Swinging, self-closing, both directions
Materials & finish
- Exterior finish
- Leaf finishes: PR prepainted steel RAL 9010, PL plasticized steel RAL 9010, IX AISI stainless steel, PX plasticized stainless steel
Product details
- Product line
- Doorsystem
- Custom sizes available
- Yes - made to order, rail passage version available
Delivery
Delivery
Origin & customs
- Country of manufacture
- Italy
- Manufacturer code
- VV F
Documents & Certificates
Documents & Certificates
Documents
- Catalogue
- View Opens in a new window.
