Description

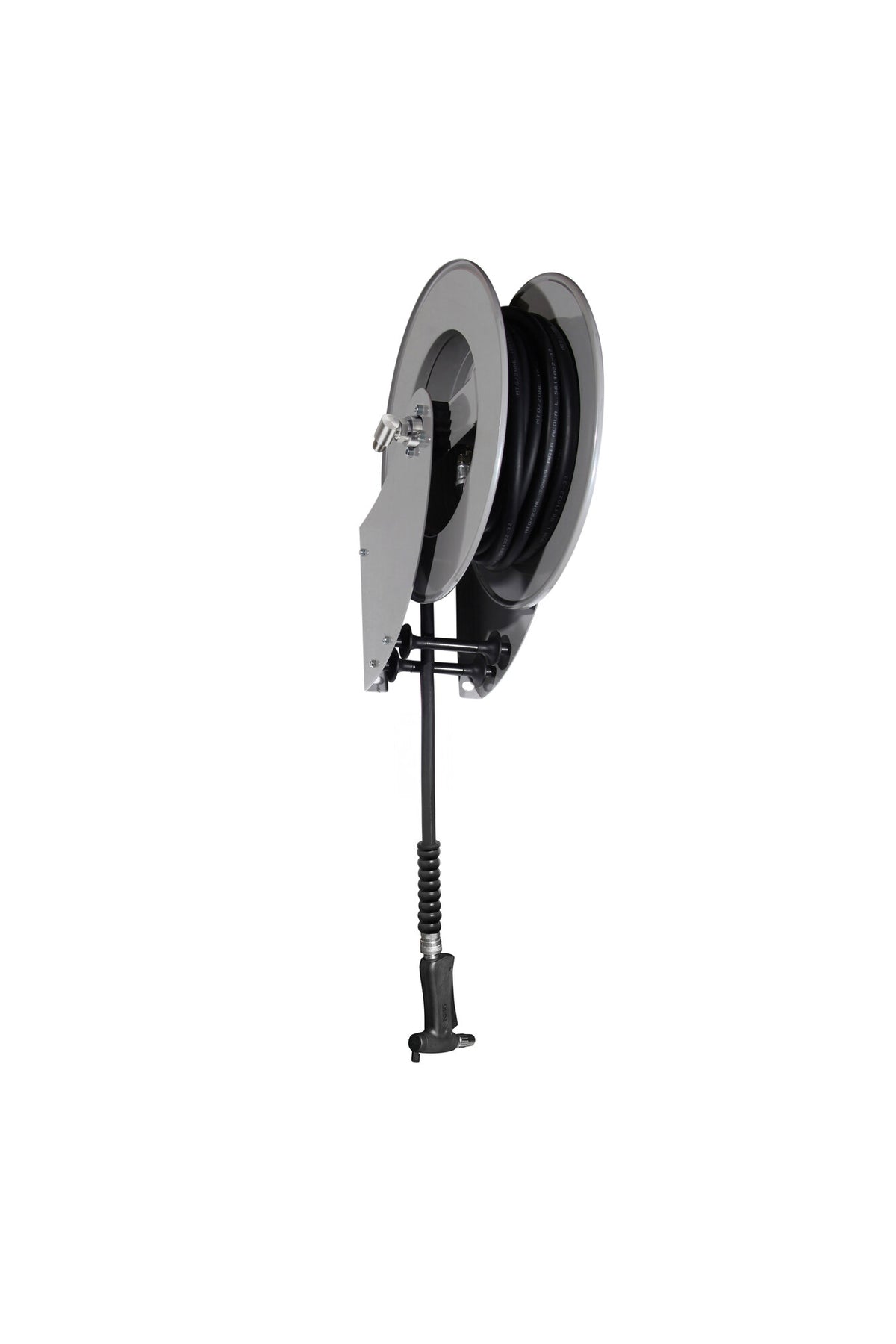

The Saro MARLON is a grey and black enamelled carbon steel hose reel for cleaning tasks in commercial kitchens, food-processing facilities, butcheries and bakeries. It mounts on a wall, automatically retracts excess hose, and comes complete with a 15 m rubber hose and an adjustable spray gun; the hose takes water up to 80 degrees C at up to 20 bar, and the gun up to 40 degrees C at up to 6 bar with a flow of 8.5 to 10.5 L/min at 3 bar.
The hose has a 1/2 inch male inlet thread and a 1/2 inch female outlet thread; the gun thread is 1/2 inch male. The reel is 430 mm in diameter, and without hose and gun the unit measures 220 x 470 x 480 mm and weighs 17.6 kg net, 19.9 kg gross. Suitable protective equipment is needed when using water above 60 degrees C.
Specifications
Specifications
Physical dimensions
- External dimensions (W×D×H)
- 220 x 470 x 480 mm
- Diameter
- 430 mm
- Net weight
- 17.6 kg
Construction & design
- Device type
- Hose reel with hose and spray gun
- Construction type
- Automatic hose retraction, wall mounting
Materials & finish
- Material
- Carbon steel with heat-resistant enamel finish, grey/black
Product details
- Intended use
- Wash-down cleaning in commercial kitchens and food-processing areas
Warranty
Warranty
- Warranty period (months)
- 24 months
Delivery
Delivery
Logistics & shipping
- Gross weight
- 19.9 kg
Origin & customs
- Country of origin
- IT
- Customs tariff number
- 84818011
- EAN
- 4017337068371
Documents & Certificates
Documents & Certificates
Documents
- Catalogue
- Download (PDF) Opens in a new window.
