Description

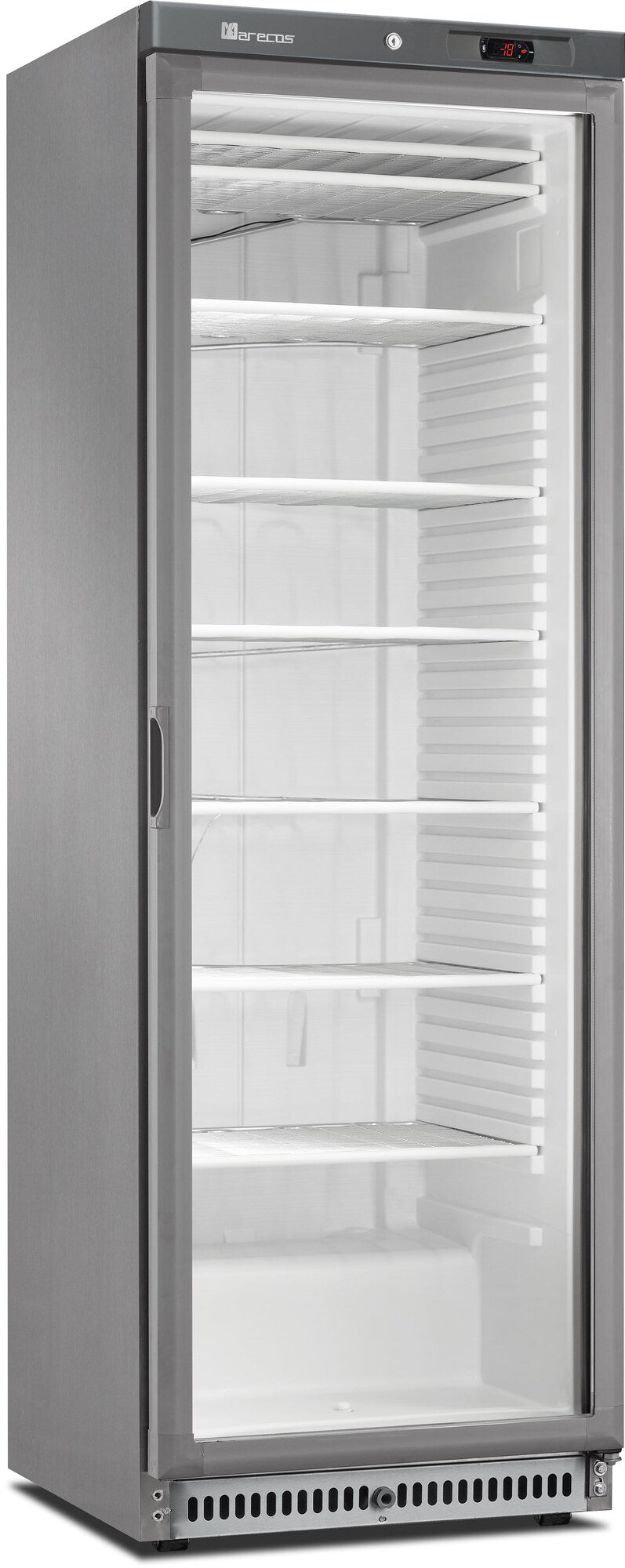

The Saro ACE 430 CS A PV is a reach-in freezer from the ACE-430 series, for professional frozen storage in restaurants, commercial kitchens, retail and food-processing facilities. The stainless steel housing holds a white plastic interior divided by six fixed evaporator shelves of 477 x 380 mm into seven compartments, behind a self-closing, lockable glass door with a white plastic frame and separately switchable LED lighting (14.4 W). Gross capacity is 386 L, net 268 L, within a temperature range of -18 to -22 °C, suitable for climate class 4.
It runs on static cooling with manual defrost and digital temperature control, on a 230 V, 50 Hz, 0.385 kW connection with R290 refrigerant, on four castors plus two levelling feet of 25 mm. External dimensions are 620 x 620/672 x 1860 mm, internal 477 x 470 x 1590 mm, insulation 50 mm, net weight 96 kg and gross weight 108 kg.
Specifications
Specifications
Physical dimensions
- External dimensions (W×D×H)
- 620 x 620/672 x 1860 mm
- Internal dimensions (W×D×H)
- 477 x 470 x 1590 mm
- Shelf dimensions
- 477 x 380 mm
- Volume
- 386 L
- Net weight
- 96 kg
Temperature & refrigeration
- Min temperature
- -22°C
- Max temperature
- -18°C
- Refrigerant
- R290
- Cooling type
- Static cooling
- Defrost type
- Manual
- Climate class
- 4
Energy & electrical
- Electric power
- 0.385 kW
- Voltage / frequency
- 230 V / 50 Hz
- Energy class
- D
Construction & design
- Device type
- Glass-door display freezer
- Construction type
- Reach-in cabinet with glass door, static cooling, separately switchable LED lighting
- Control type
- Digital temperature control
- Doors
- 1 glass door, self-closing, lockable
- Shelves
- 6, fixed evaporator shelves, 7 compartments
- Castors
- 4 castors
- Feet / legs
- 2 levelling feet, H 25 mm
Materials & finish
- Material
- Stainless steel housing, white plastic interior, white plastic glass-door frame
Product details
- Product line
- ACE-430 series
- Intended use
- Professional frozen storage and display in restaurants, commercial kitchens, retail and food-processing facilities.
Warranty
Warranty
- Warranty period (months)
- 24 months
Delivery
Delivery
Logistics & shipping
- Gross weight
- 108 kg
Origin & customs
- Country of origin
- PT
- Customs tariff number
- 8418501990
- EAN
- 4017337067381
Documents & Certificates
Documents & Certificates
Documents
- Catalogue
- Download (PDF) Opens in a new window.
Certifications
- Certifications
- CE, RoHS
