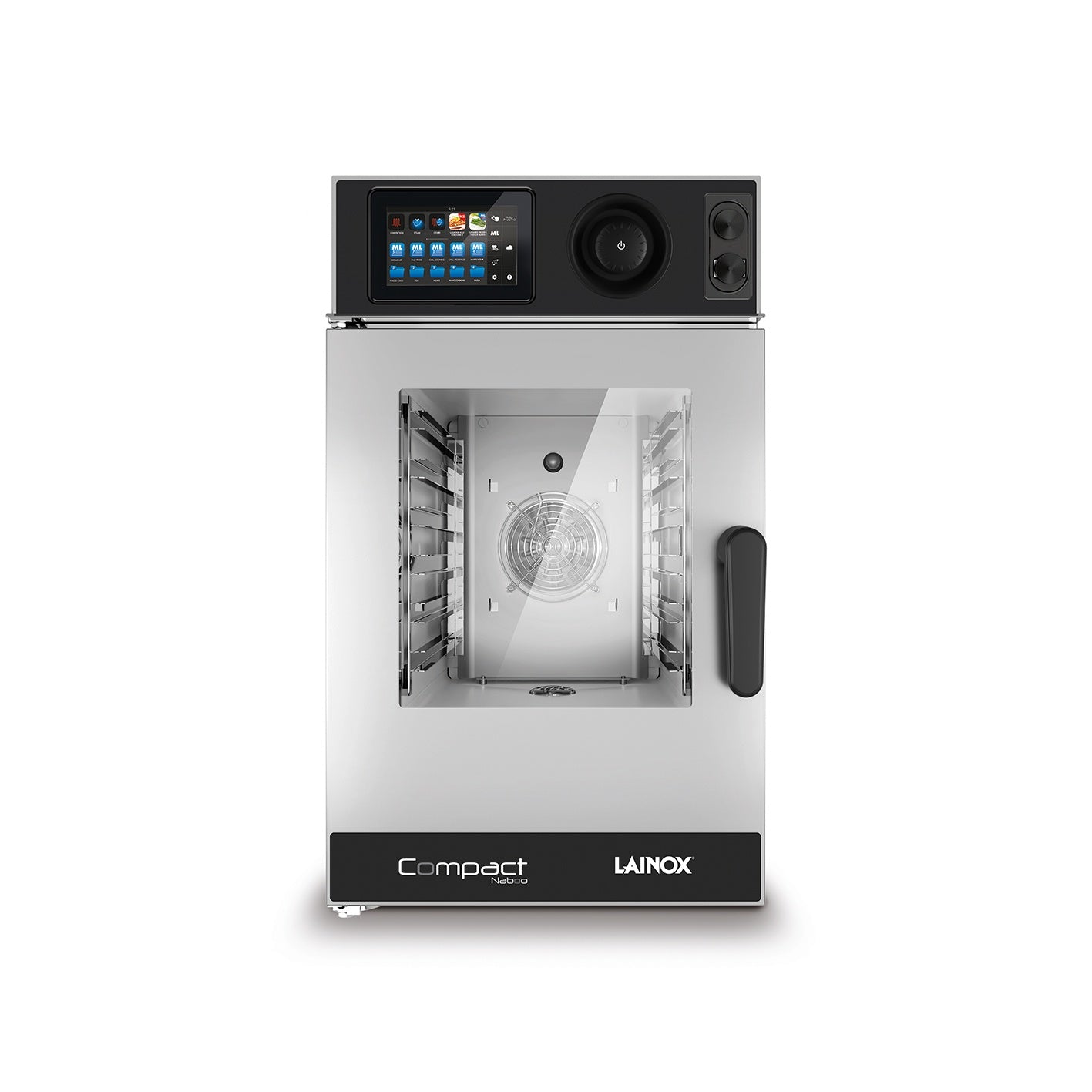

Lainox Compact Combi Oven Naboo COEN061B, 6x GN 1/1, 7.8 kW

The Lainox Compact Naboo COEN061B is an electric combi oven for small and medium catering kitchens, holding 4, 6 or 12 x GN 1/1 trays (530 x 325 mm) depending on tray pitch (78, 52 or 26 mm). It draws 7.8 kW at 12.1 A on a 3N AC 400 V, 50/60 Hz supply, in an external footprint of 510 x 805 x 840 mm (W x D x H). Manual mode covers convection from 30°C to 300°C, steam from 30°C to 130°C, and combined convection and steam up to 300°C.

The chamber is 1-mm-thick AISI 304 stainless steel with fully rounded edges, smooth and watertight, heated by INCOLOY 800 armoured elements and fed by direct steam generation — water is injected onto the fan and nebulised across the heating elements for immediate steam availability, without a boiler. A rear-ventilated double tempered glass door with heat-reflecting interior glass, low-consumption LED chamber lighting, a 4-point Ø3mm core probe, and Autoclima, IES and Ecovapor automatic climate and energy control come as standard, along with IPX4 protection and a 65°C maximum external door temperature. Cleaning uses the automatic VCS vapour washing system with 7 programmes, including a 10-minute fast cycle.

Recipes are managed through ICS (Interactive Cooking System) automatic cooking programmes and a 7-inch HD capacitive touchscreen with a choice of 29 languages. Wi-Fi connects the oven to the Lainox Nabook Plus cloud platform for recipe management and remote HACCP monitoring, and a USB port handles data export, software updates and recipe transfer.
