Description
A single shelf for the Universal hook-in system, 1170 mm wide and 700 mm deep, supplied with the four clips that hook it into the uprights. It carries 85 kg spread evenly across the surface.
This is the largest panel in the painted range — the widest bay at the deepest setting, so the rated load is lower than on the narrower sizes. Levels sit on a 25 mm pitch. Painted steel EN 10130 DC01.
Specifications
Specifications
Physical dimensions
- Shelf dimensions
- 1170 × 700 mm
Construction & design
- Construction type

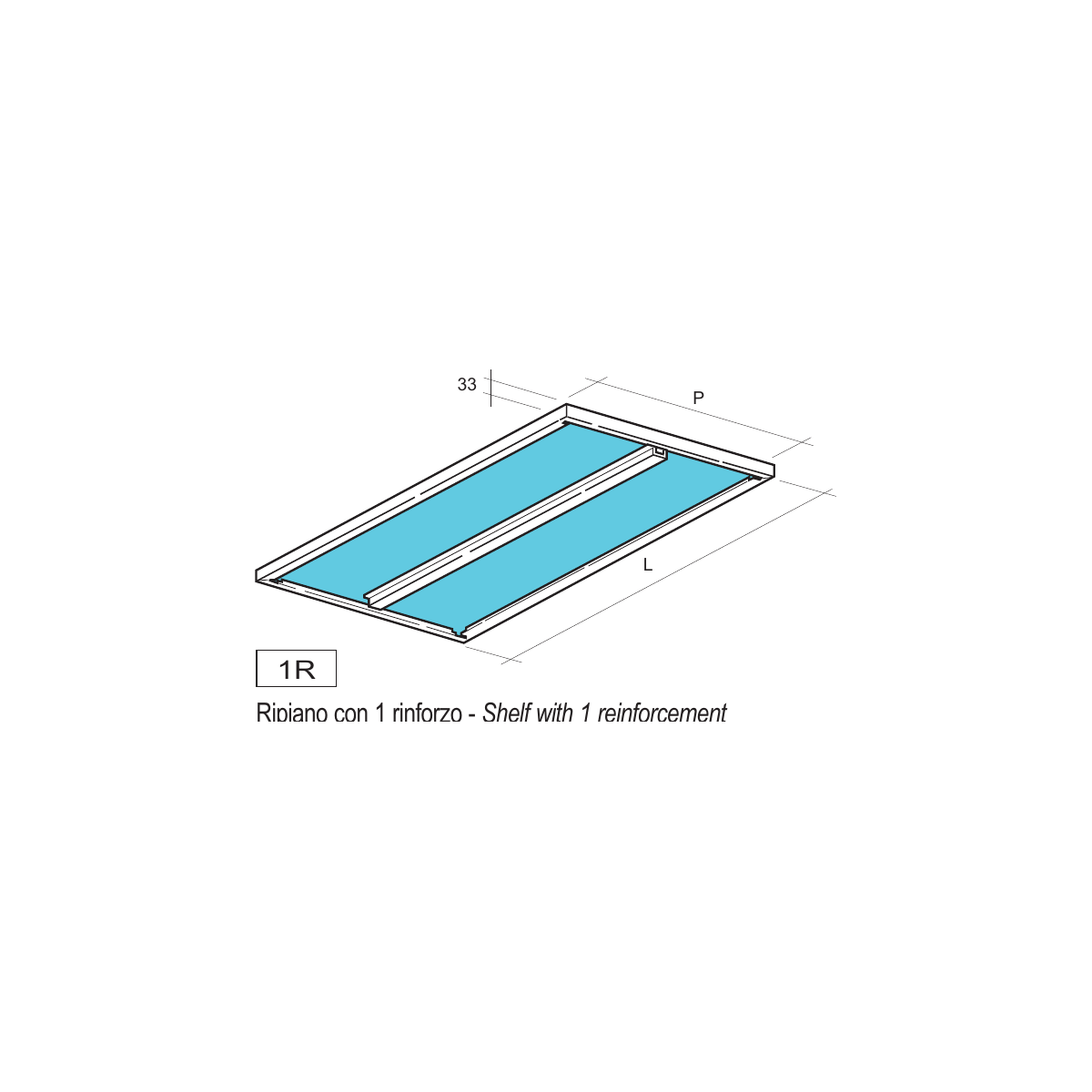

- Type 1R, one reinforcement rib
- Max shelf load
- 85 kg, uniformly distributed kg
Materials & finish
- Material
- Steel EN 10130 DC01
- Exterior finish
- Epoxy powder coat, baked at 180 °C
Product details
- Product line
- Universal
