Description
The LaFortezza Universal Galvatop is a light-duty modular shelving bay that assembles without bolts — the shelves hook straight into the slotted uprights on a 25 mm pitch, so a level can be repositioned as what you store changes. This bay is supplied complete and free-standing: four 3000 mm uprights, four 400 mm end beams, seven shelves and four plastic floor feet, delivered flat for assembly on site.
Every steel part is pre-galvanised, so the zinc runs through the section instead of sitting on top of it. At 1300 mm wide the galvanised panel is rated to 60 kg per shelf evenly distributed. At this height the manufacturer specifies one cross brace every eight bays for runs carrying up to 1000 kg.
Specifications
Specifications
Physical dimensions
- External dimensions (W×D×H)
- 3000 × 1300 × 400 mm
- Height
- 3000 mm
- Depth
- 400 mm
- Shelf dimensions
- 1270 × 400 mm
Construction & design
- Construction type
- Bolt-free hook-in assembly, 25 mm slot pitch
- Shelves

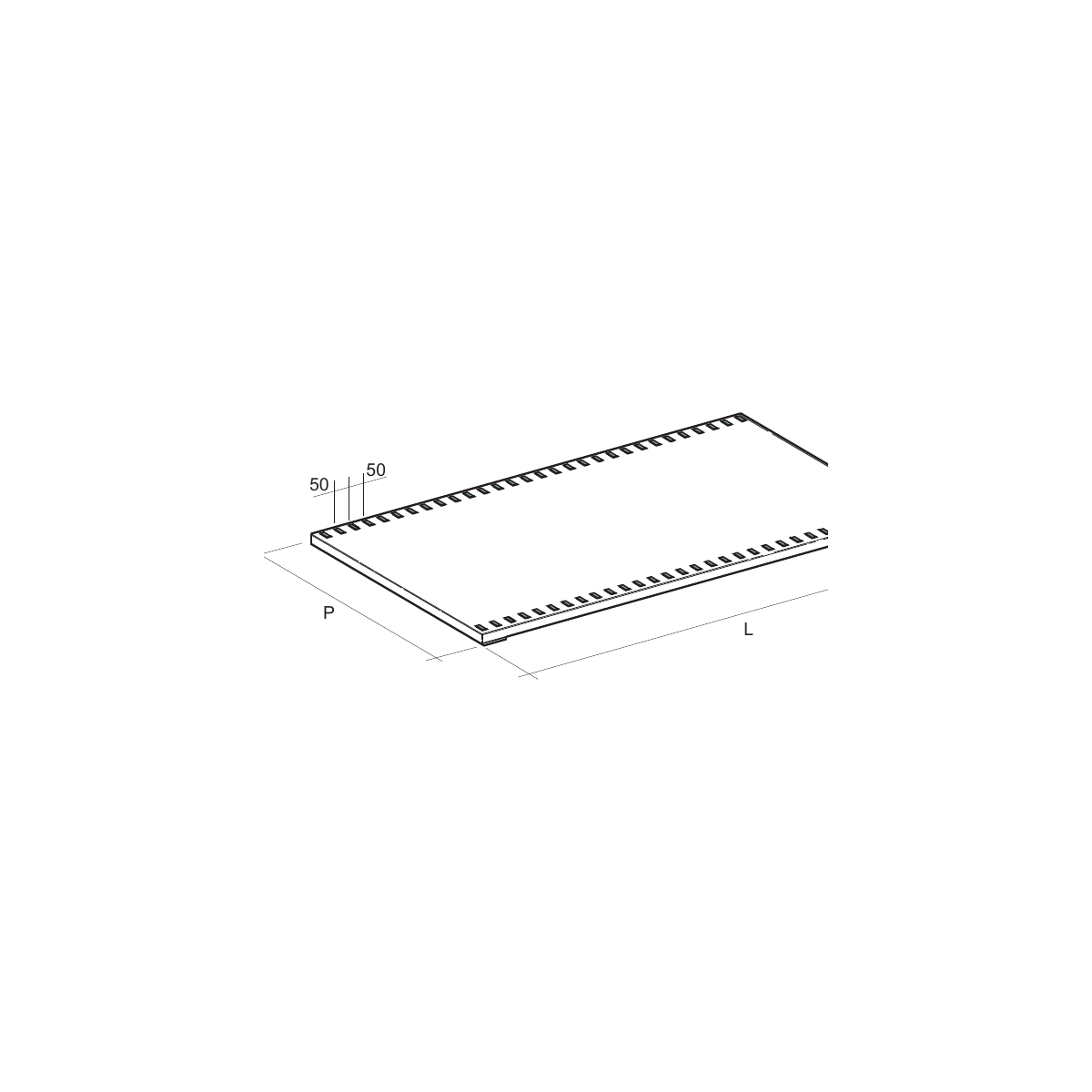

- 7 × plain slotted shelf (NT)
- Max shelf load
- 60 kg per shelf, uniformly distributed kg
- Mounting type
- Free-standing
- Feet / legs
- 4 plastic floor feet included
Materials & finish
- Material
- Pre-galvanised steel
- Exterior finish
- Hot-dip galvanised, Z100
- Steel grade
- Uprights EN 10147 S250 GD Z100; beams and shelves EN 10142 DX51D Z100
Product details
- Product line
- Universal Galvatop
- Intended use
- Damp stores, chill rooms, unheated warehouses
- Custom sizes available
- Galvanised: heights 2000, 2500 and 3000 mm; bay widths 1000 and 1300 mm; depths 400–600 mm
Accessories & contents
- Kit contents
- 4 × upright 3000 mm (314) · 4 × end traverse 400 mm (344) · 7 × shelf 1270 × 400 mm (417) · 4 × plastic foot (2192)
