Description
The LaFortezza Universal is a light-duty modular shelving bay that assembles without bolts — the shelves hook straight into the slotted uprights on a 25 mm pitch, so a level can be repositioned as what you store changes. This bay is supplied complete and free-standing: four 3000 mm uprights, four 400 mm end beams, seven reinforced shelves and four plastic floor feet, delivered flat for assembly on site.
Each 970 × 400 mm shelf is rated to 180 kg uniformly distributed and the frame itself to 2800 kg. At this height the manufacturer specifies one cross brace every eight bays for runs carrying up to 1000 kg, so plan bracing into a long run. Uprights are cold-rolled EN 10268 H240 steel, and every component is degreased, phosphated and finished in electrostatic epoxy powder baked at 180 °C for at least 25 minutes. Seven levels in a one-metre footprint makes this the densest bay in the range for archive and dry-goods storage.
Specifications
Specifications
Physical dimensions
- External dimensions (W×D×H)
- 3000 × 1000 × 400 mm
- Height
- 3000 mm
- Depth
- 400 mm
- Shelf dimensions
- 970 × 400 mm
Construction & design
- Construction type
- Bolt-free hook-in assembly, 25 mm slot pitch
- Shelves

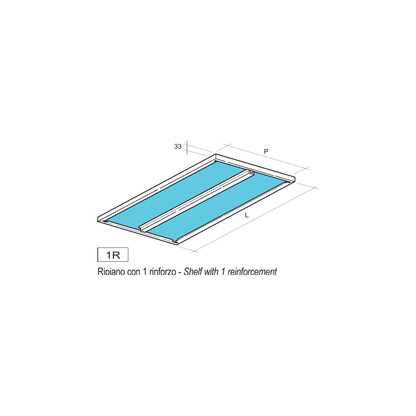

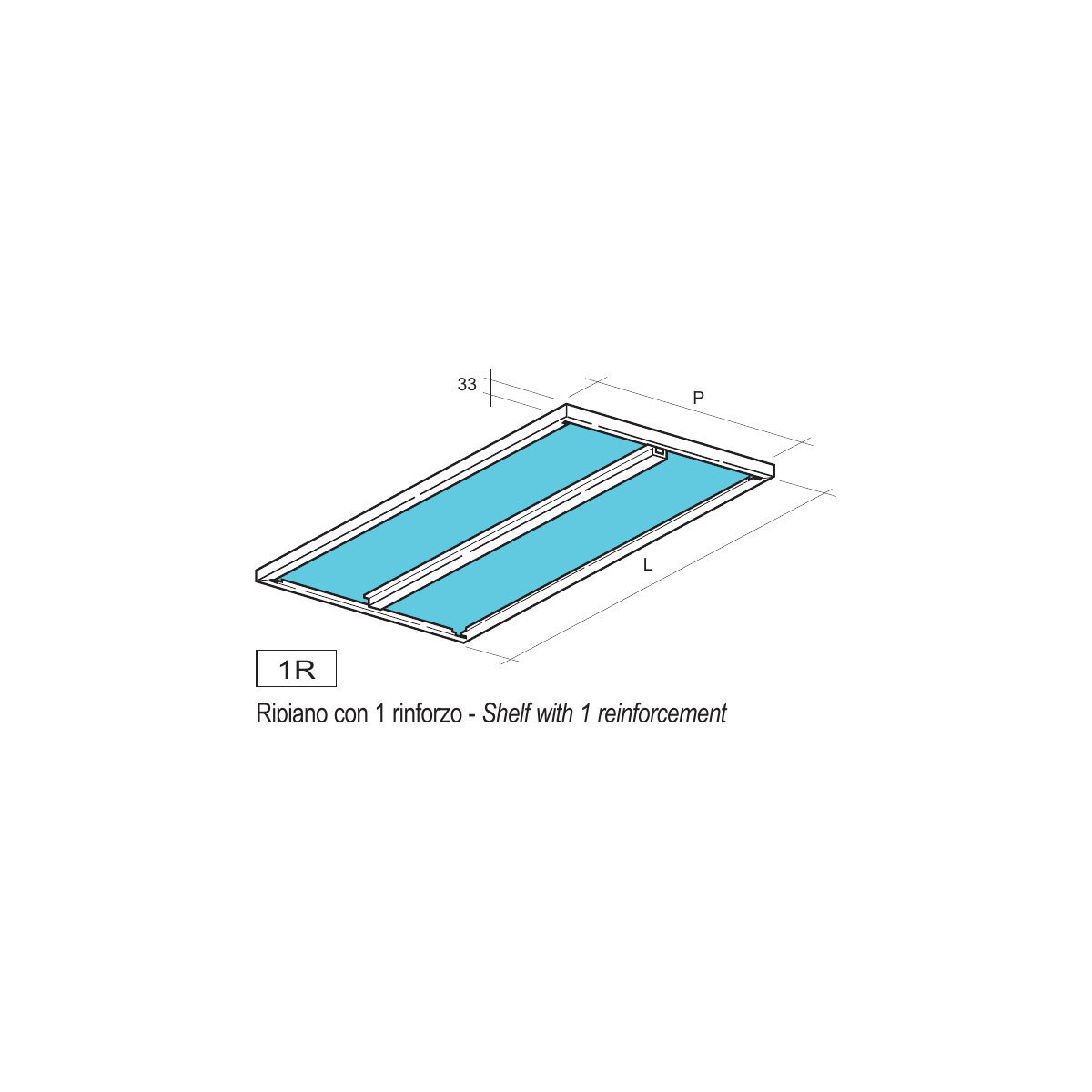

- 7 × reinforced shelf (1R)
- Max shelf load
- 180 kg per shelf, uniformly distributed kg
- Mounting type
- Free-standing
- Feet / legs
- 4 plastic floor feet included
Materials & finish
- Material
- Cold-rolled steel
- Exterior finish
- Epoxy powder coat, baked at 180 °C
- Steel grade
- Uprights EN 10268 H240 la; beams and shelves EN 10130 DC01
Product details
- Product line
- Universal
- Intended use
- Stockrooms, archives, backstore and warehouse storage
- Custom sizes available
- Heights 2000, 2500 and 3000 mm; bay widths 800–1300 mm; depths 300–700 mm
Accessories & contents
- Kit contents
- 4 × upright 3000 mm (U25000043) · 4 × end traverse 400 mm (1078) · 7 × shelf 970 × 400 mm (3039) · 4 × plastic foot (2192)
