Description
The LaFortezza Universal is a light-duty modular shelving bay that assembles without bolts — the shelves hook straight into the slotted uprights on a 25 mm pitch, so a level can be repositioned as what you store changes. This bay is supplied complete and free-standing: four 2500 mm uprights, four 400 mm end beams, six reinforced shelves and four plastic floor feet, delivered flat for assembly on site.
At 1300 mm this is the widest bay module in the range, so it covers more wall in fewer bays. Each 1270 × 400 mm shelf is rated to 105 kg uniformly distributed and the frame itself to 2800 kg. Uprights are cold-rolled EN 10268 H240 steel, finished in electrostatic epoxy powder baked at 180 °C.
Specifications
Specifications
Physical dimensions
- External dimensions (W×D×H)
- 2500 × 1300 × 400 mm
- Height
- 2500 mm
- Depth
- 400 mm
- Shelf dimensions
- 1270 × 400 mm
Construction & design
- Construction type
- Bolt-free hook-in assembly, 25 mm slot pitch
- Shelves

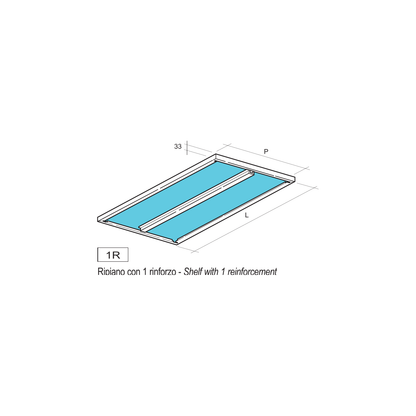

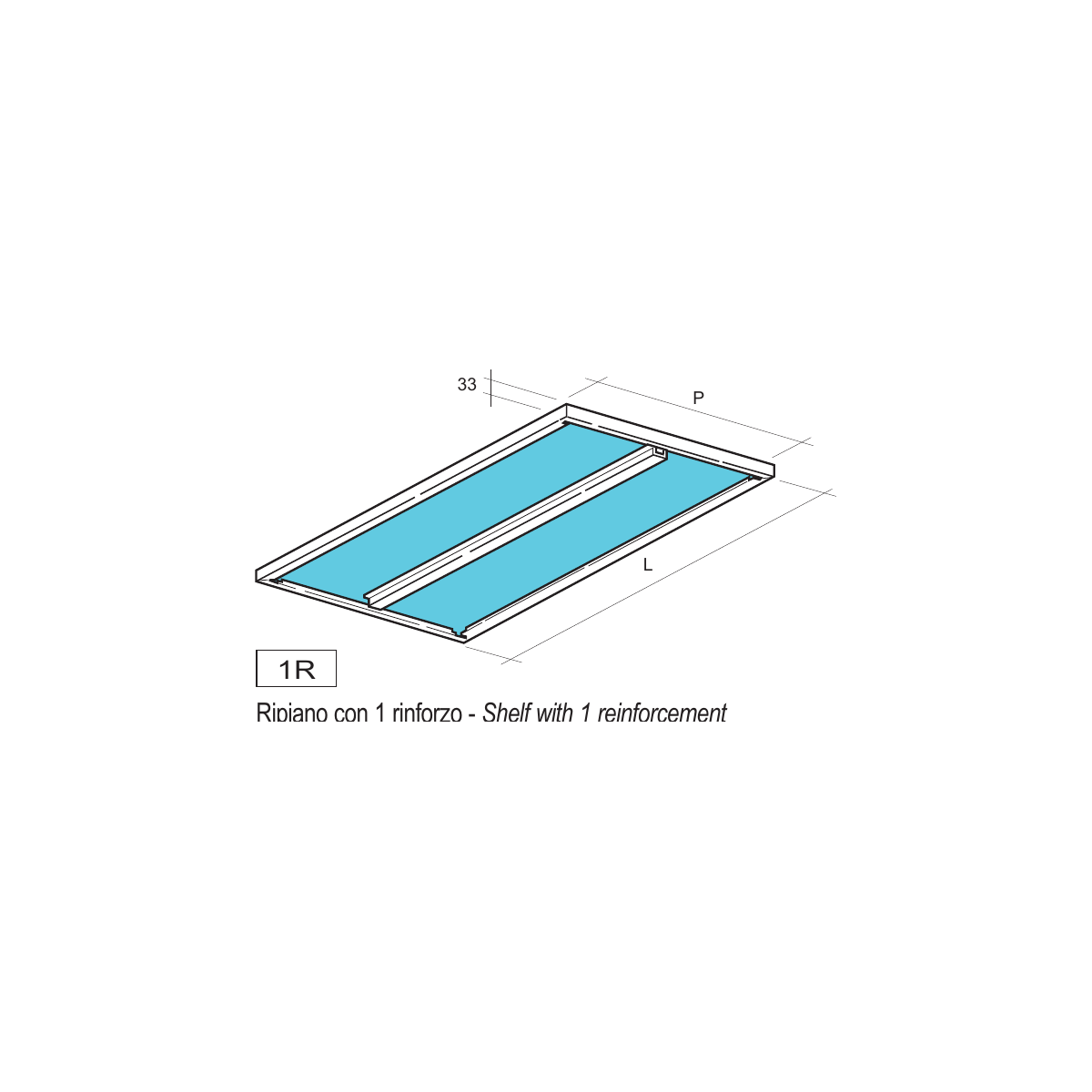

- 6 × reinforced shelf (1R)
- Max shelf load
- 105 kg per shelf, uniformly distributed kg
- Mounting type
- Free-standing
- Feet / legs
- 4 plastic floor feet included
Materials & finish
- Material
- Cold-rolled steel
- Exterior finish
- Epoxy powder coat, baked at 180 °C
- Steel grade
- Uprights EN 10268 H240 la; beams and shelves EN 10130 DC01
Product details
- Product line
- Universal
- Intended use
- Stockrooms, archives, backstore and warehouse storage
- Custom sizes available
- Heights 2000, 2500 and 3000 mm; bay widths 800–1300 mm; depths 300–700 mm
Accessories & contents
- Kit contents
- 4 × upright 2500 mm (U25000033) · 4 × end traverse 400 mm (1078) · 6 × shelf 1270 × 400 mm (2989) · 4 × plastic foot (2192)
