Description
The LaFortezza Universal Galvatop is a light-duty modular shelving bay that assembles without bolts — the shelves hook straight into the slotted uprights on a 25 mm pitch, so a level can be repositioned as what you store changes. This bay is supplied complete and free-standing: four 2500 mm uprights, four 500 mm end beams, six shelves and four plastic floor feet, delivered flat for assembly on site.
Every steel part is pre-galvanised, so the zinc runs through the section instead of sitting on top of it. That makes this the version for damp stores, chill rooms and unheated warehouses where a painted bay would eventually corrode. Each 970 × 500 mm shelf is rated to 100 kg uniformly distributed and the frame to 2800 kg.
Specifications
Specifications
Physical dimensions
- External dimensions (W×D×H)
- 2500 × 1000 × 500 mm
- Height
- 2500 mm
- Depth
- 500 mm
- Shelf dimensions
- 970 × 500 mm
Construction & design
- Construction type
- Bolt-free hook-in assembly, 25 mm slot pitch
- Shelves

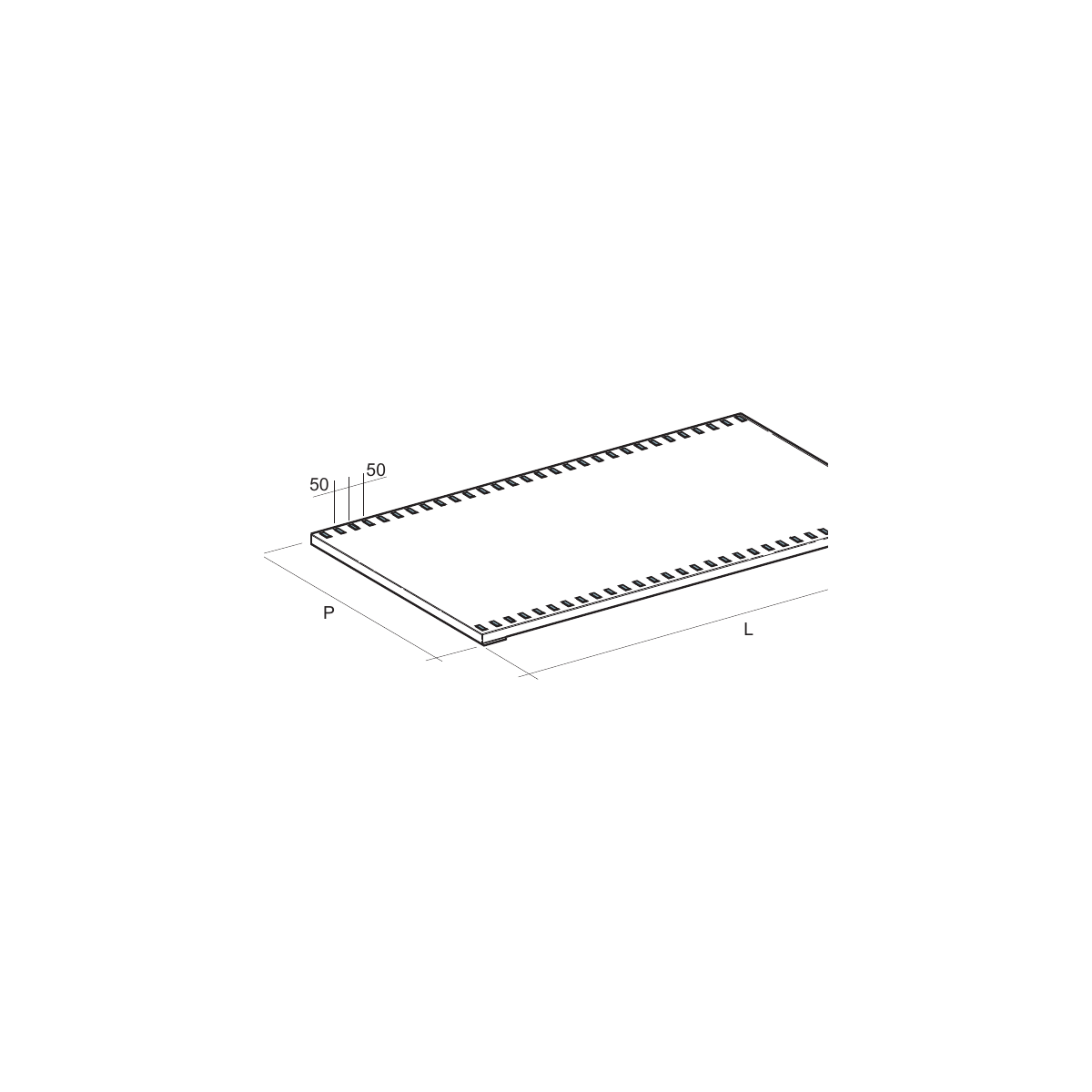

- 6 × plain slotted shelf (NT)
- Max shelf load
- 100 kg per shelf, uniformly distributed kg
- Mounting type
- Free-standing
- Feet / legs
- 4 plastic floor feet included
Materials & finish
- Material
- Pre-galvanised steel
- Exterior finish
- Hot-dip galvanised, Z100
- Steel grade
- Uprights EN 10147 S250 GD Z100; beams and shelves EN 10142 DX51D Z100
Product details
- Product line
- Universal Galvatop
- Intended use
- Damp stores, chill rooms, unheated warehouses
- Custom sizes available
- Galvanised: heights 2000, 2500 and 3000 mm; bay widths 1000 and 1300 mm; depths 400–600 mm
Accessories & contents
- Kit contents
- 4 × upright 2500 mm (313) · 4 × end traverse 500 mm (345) · 6 × shelf 970 × 500 mm (412) · 4 × plastic foot (2192)
Delivery
Delivery
Logistics & shipping
- Dispatch
- 4–6 weeks
- Collect from our Riga store
- Ready within 4–6 weeks
