Description
The LaFortezza Universal is a light-duty modular shelving bay that assembles without bolts — the shelves hook straight into the slotted uprights on a 25 mm pitch, so a level can be repositioned as what you store changes. This bay is supplied complete and free-standing: four 2000 mm uprights, four 500 mm end beams, five reinforced shelves and four plastic floor feet, delivered flat for assembly on site.

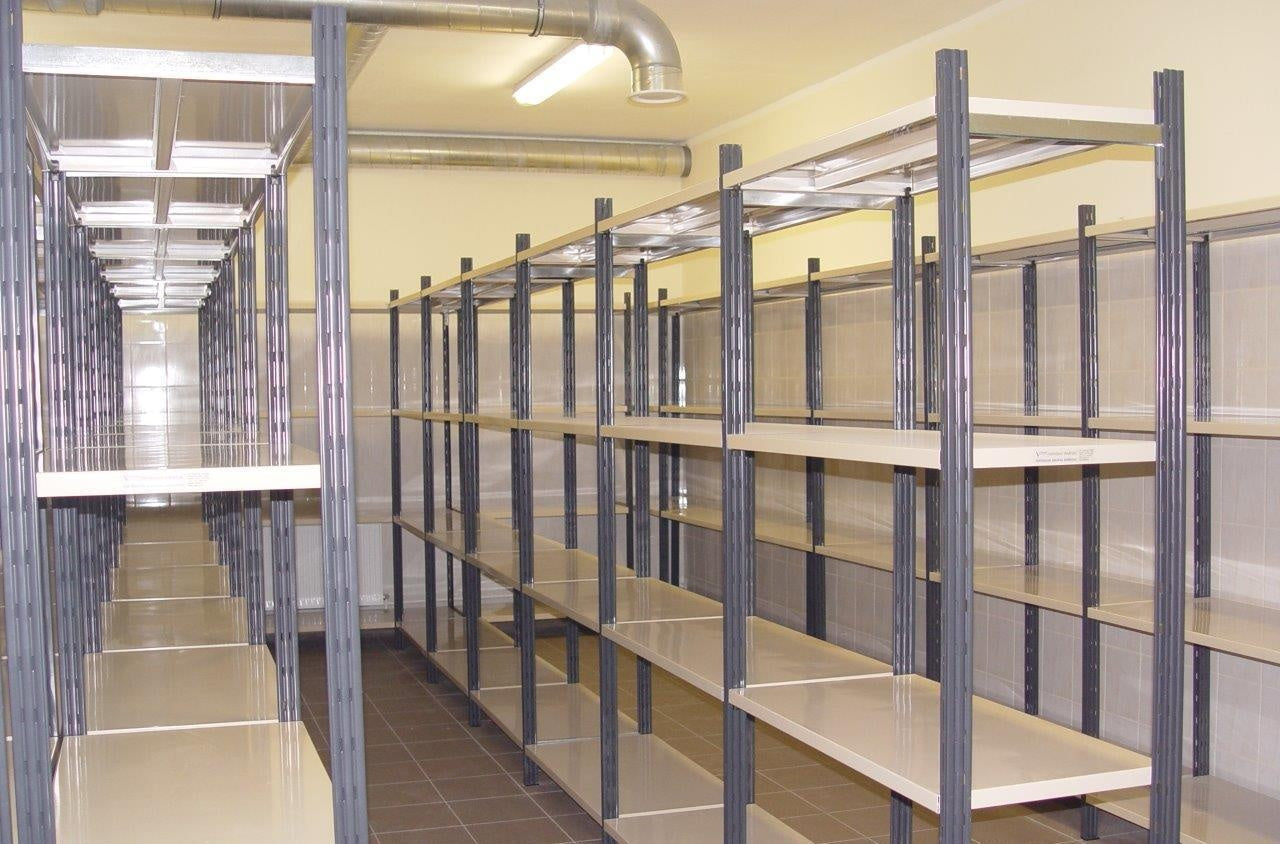

Each 970 × 500 mm shelf is rated to 180 kg uniformly distributed and the frame itself to 2800 kg. Uprights are cold-rolled EN 10268 H240 steel, and every component is degreased, phosphated and finished in electrostatic epoxy powder baked at 180 °C for at least 25 minutes. Bays stand side by side to form a continuous run, and uprights, beams and shelves can be ordered individually to extend it later.
Specifications
Specifications
Physical dimensions
- External dimensions (W×D×H)
- 2000 × 1000 × 500 mm
- Height
- 2000 mm
- Depth
- 500 mm
- Shelf dimensions
- 970 × 500 mm
Construction & design
- Construction type
- Bolt-free hook-in assembly, 25 mm slot pitch
- Shelves

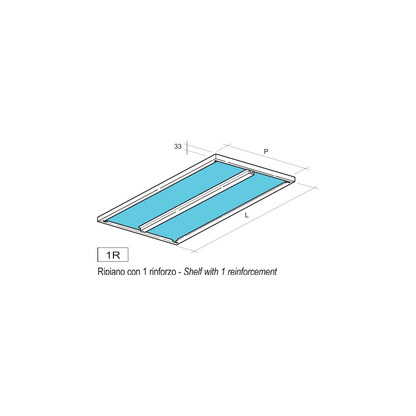

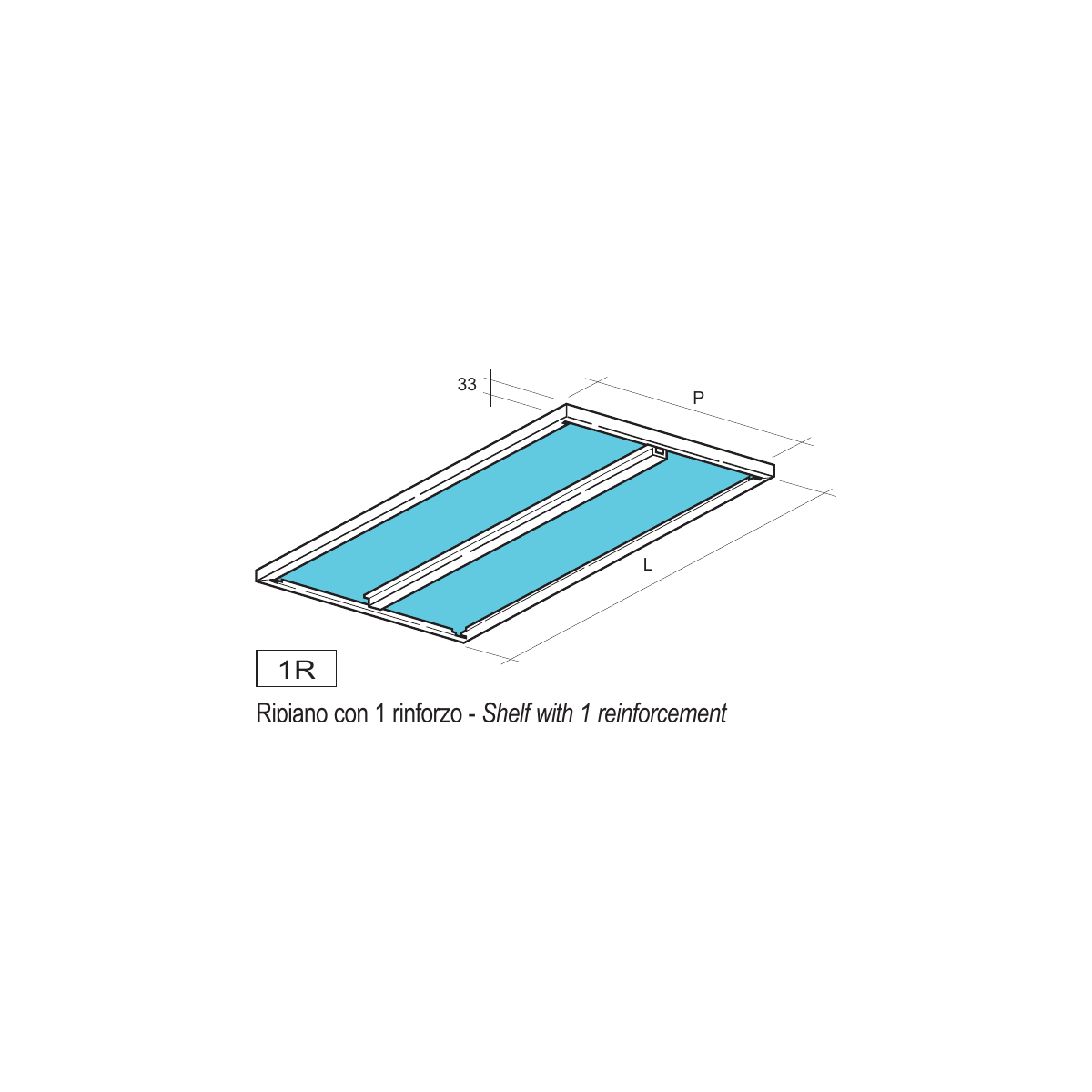

- 5 × reinforced shelf (1R)
- Max shelf load
- 180 kg per shelf, uniformly distributed kg
- Mounting type
- Free-standing
- Feet / legs
- 4 plastic floor feet included
Materials & finish
- Material
- Cold-rolled steel
- Exterior finish
- Epoxy powder coat, baked at 180 °C
- Steel grade
- Uprights EN 10268 H240 la; beams and shelves EN 10130 DC01
Product details
- Product line
- Universal
- Intended use
- Stockrooms, archives, backstore and warehouse storage
- Custom sizes available
- Heights 2000, 2500 and 3000 mm; bay widths 800–1300 mm; depths 300–700 mm
Accessories & contents
- Kit contents
- 4 × upright 2000 mm (U25000023) · 4 × end traverse 500 mm (1079) · 5 × shelf 970 × 500 mm (3045) · 4 × plastic foot (2192)
