Description

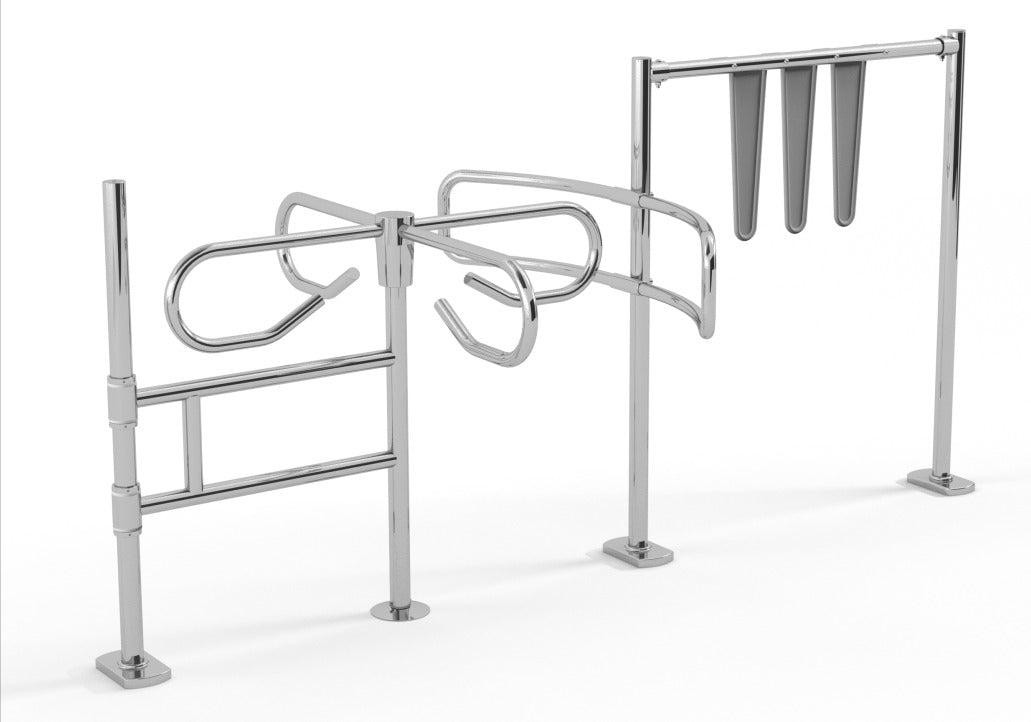

The Damix turnstile set organises a one-way flow of customers into the self-service area of a store and protects it against theft. Customers pass through the turnstile; trolleys pass through the adjacent trolley pass.
The set is configured from five elements, each ordered separately: the Porta'Turna turnstile in a right- or left-hand version (index 07A0016), a vertical stand to the turnstile with arms (919-320-518), a trolley pass in L-800 or L-1000 (07A0019), a Ø48 H-1085 mm stand (919-320-408) and a bottom cover for the Ø48 mm stand (919-320-511). Elements of the H-1085 room partition complete the run.
The turnstile stands 1085 mm high with a 900 mm arm radius; the trolley pass is 800 or 1000 mm wide. The finish is chrome throughout. Tell us the entrance width and the flow you need and the set will be quoted to suit.
Specifications
Specifications
Physical dimensions
- Height
- 1085 mm
- Column diameter
- 48 mm
Construction & design
- Mounting type
- Anchored to the floor
Materials & finish
- Material
- Steel
- Exterior finish
- Chrome
Documents & Certificates
Documents & Certificates
Documents
- Catalogue
- Download (PDF) Opens in a new window.
