REDFOX

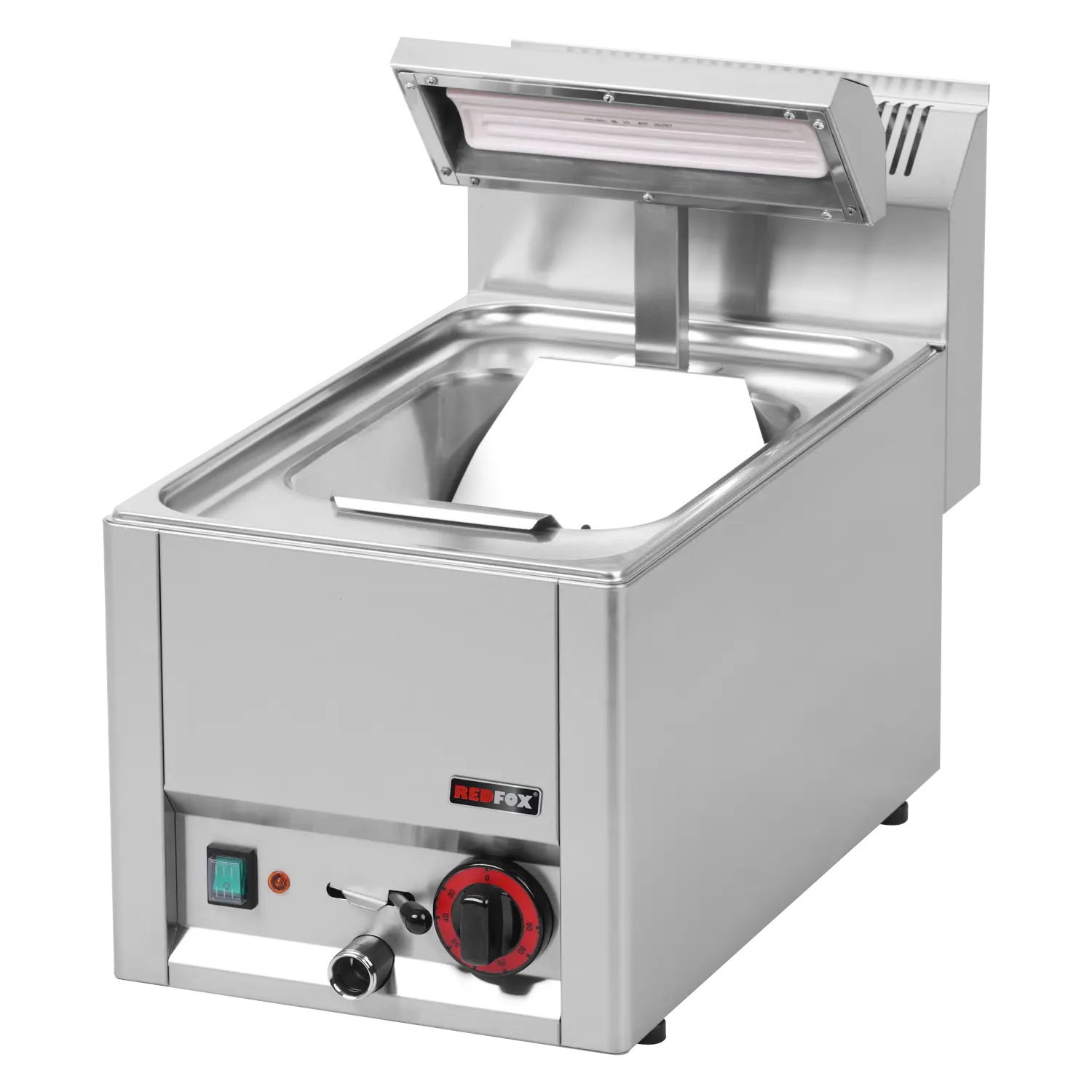

Chip scuttle heated from above and bellow ceramic heat lamp
Chip scuttle heated from above and bellow ceramic heat lamp
UH 30 EL
Chip scuttle heated from above and bellow ceramic heat lamp | REDFOX - UH 30 EL
1000 in stock
Prices shown exclude tax. Your final total is confirmed at checkout.
Couldn't load pickup availability
Description
Description
Net Width [mm]: 328
Net Depth [mm]: 609
Net Height [mm]: 290
Net Weight [kg]: 13.10
Gross Width [mm]: 692
Gross depth [mm]: 402
Gross Height [mm]: 570
Gross Weight [kg]: 13.60
Device type: Electric unit
Construction type of device: Table top
Power electric [kW]: 0.850
Loading: 230 V / 1N - 50 Hz
Protection of controls: IPX4
Material: AISI 430 + AISI 304
Indicators: operation and warm-up
Worktop type: Molded - comfortable cleaning maintenance
Worktop material: AISI 304
Worktop Thickness [mm]: 0.80
Device heating type: Ceramic lamp
Maximum device temperature [°C]: 90
Minimum device temperature [°C]: 30
Adjustable feet: Yes
False bottom: Yes
Number of basins: 1
Basin material: AISI 304 - High quality stainless steel
Drain type: On the front panel
Safety drain: Yes
Number of GN / EN: 1
GN / EN size in device: GN 1/2
GN device depth: 200
Heating location: Upper and lower
Cross-section of conductors CU [mm²]: 0,5
Specifications
Specifications
Physical dimensions
- External dimensions (W×D×H)
- 328 x 609 x 290 mm mm
- Packed dimensions (W×D×H)
- 692 x 402 x 570 mm
- Net weight
- 13.1 kg
Temperature & refrigeration
- Min temperature
- 30.0°C
- Max temperature
- 90°C
Energy & electrical
- Electric power
- 0.85 kW
- Voltage / frequency
- 230 V / 1N - 50 Hz
Construction & design
- Device type
- Electric unit
- Construction type
- Table top
Materials & finish
- Material
- AISI 430 + AISI 304
- Interior finish
- AISI 430 + AISI 304
- Worktop material
- AISI 304
- Worktop type
- Molded - comfortable cleaning maintenance
Cooking & heating
- Protection controls
- IPX4
Delivery
Delivery
Logistics & shipping
- Gross weight
- 13.6 kg
