Description

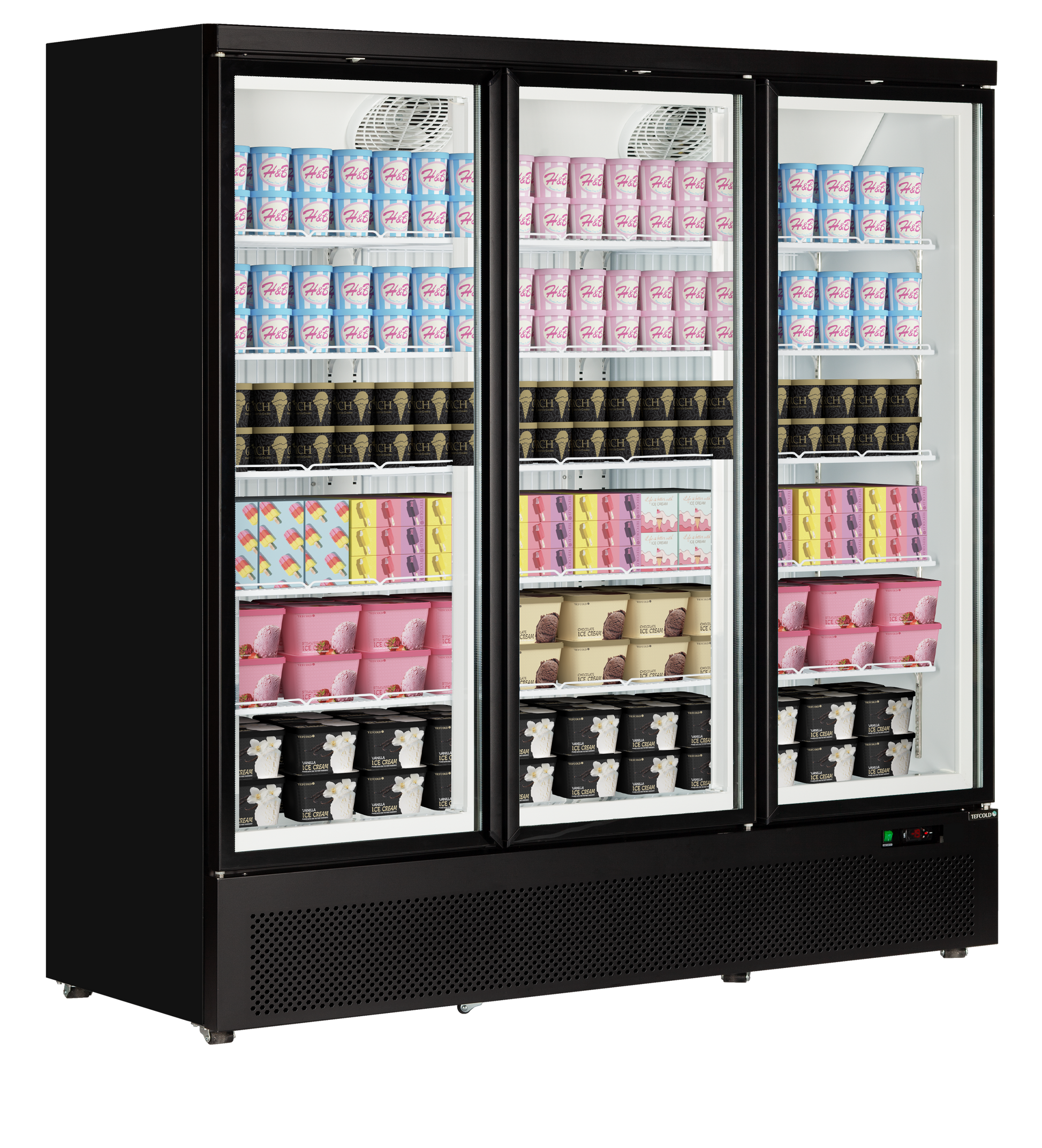

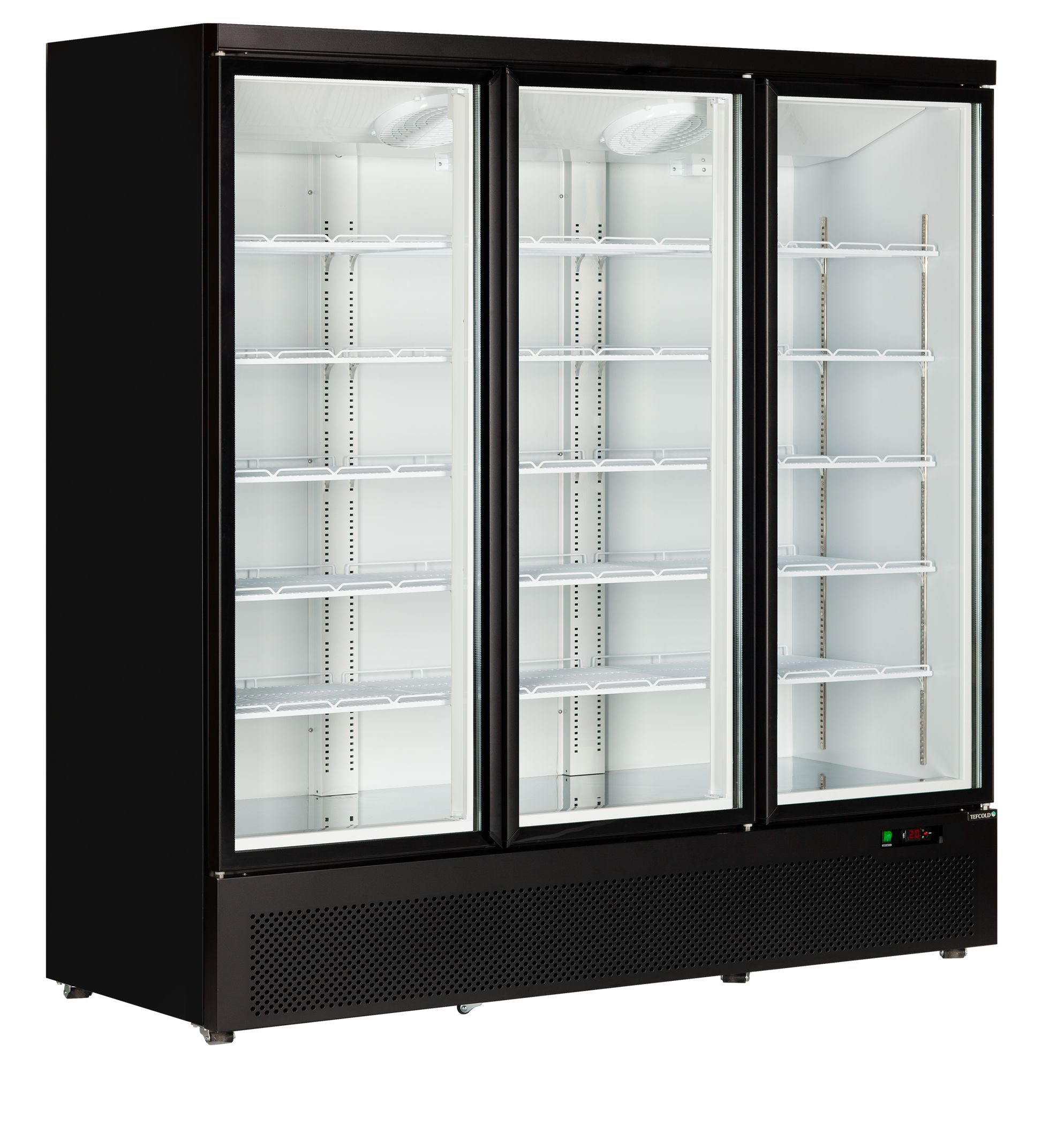

The Atom Maxi F3DB is the three-door display freezer at the top of the Atom Maxi range, giving the most frozen food capacity while keeping every shelf visible through self-closing heated glass doors with triple-glazed insulated glass. A lock secures the white-interior cabinet outside trading hours.

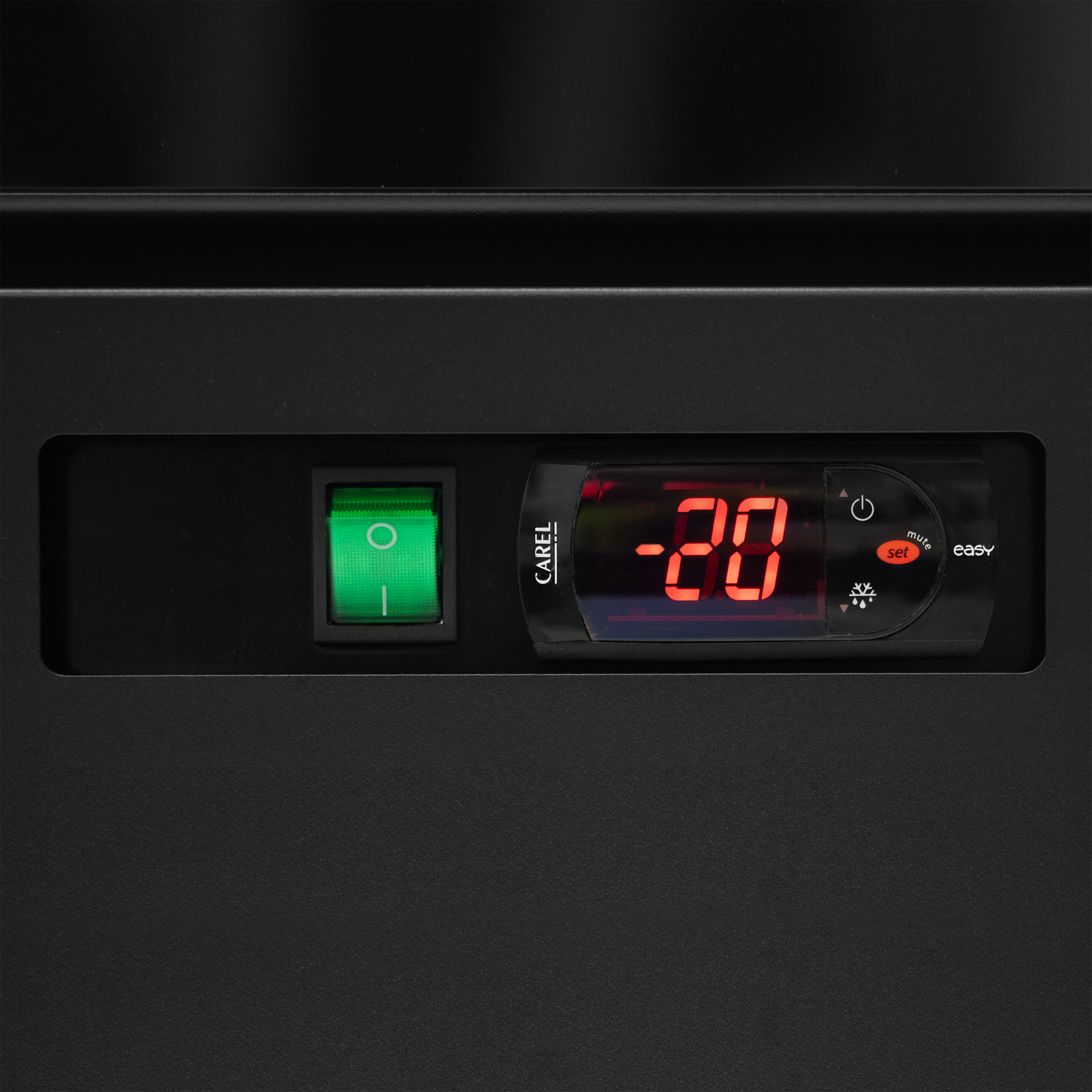

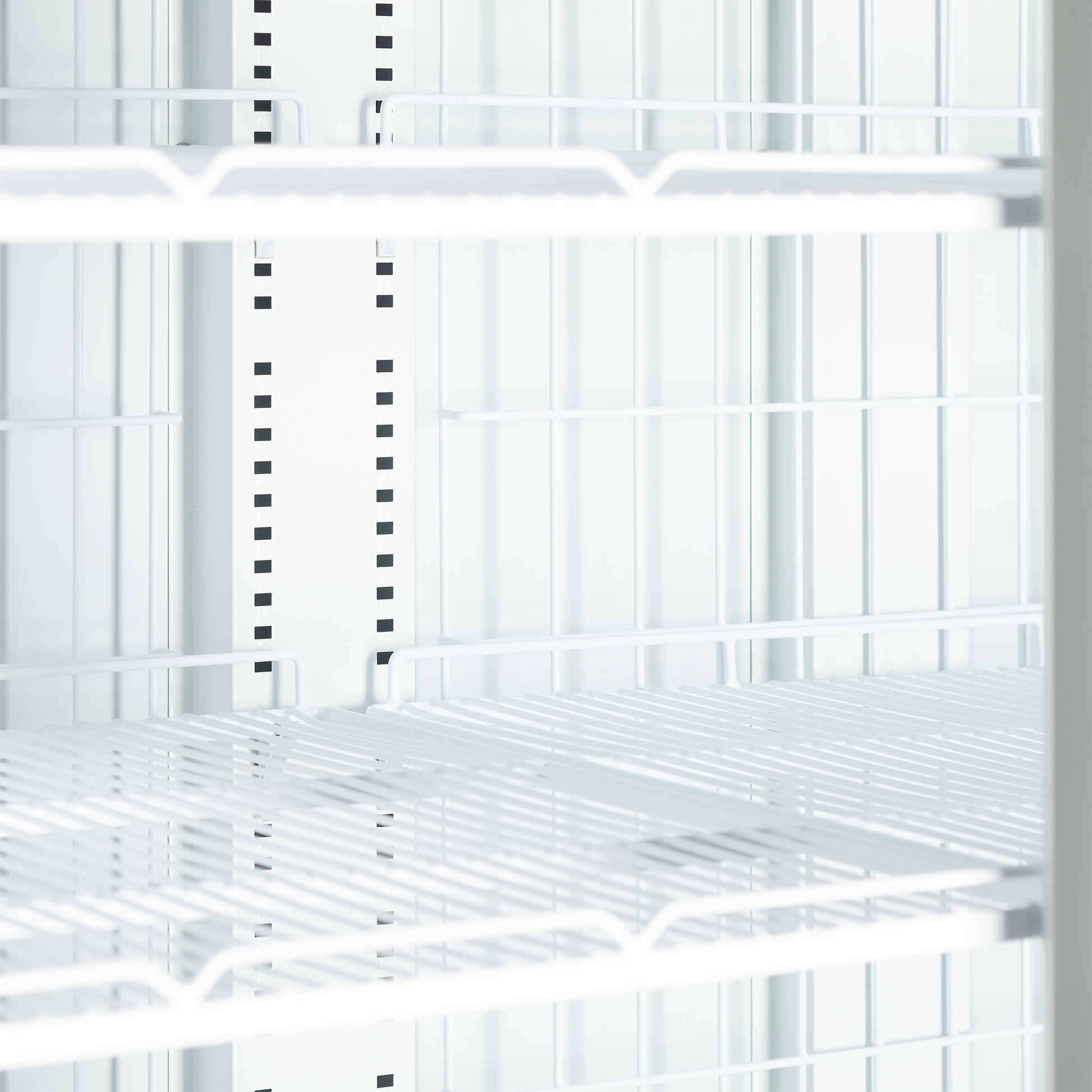

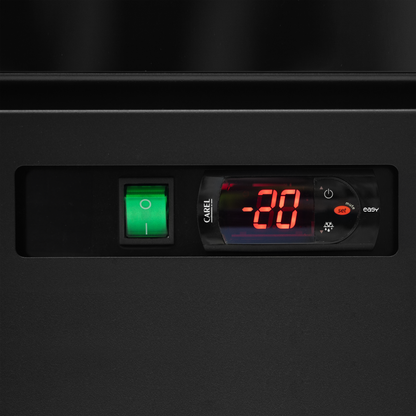

Fifteen adjustable shelves are shared across the three doors, letting frozen ranges be rearranged as stock changes, and an internal vertical LED light keeps the display clearly lit. Ventilated cooling is run through a digital controller with a temperature display, and the unit stands on castors with a mirror-effect stainless steel base; a cooler version of the same body is also available.
Specifications
Specifications
Physical dimensions
- External dimensions (W×D×H)
- 1880 x 760 x 2003 mm mm
- Internal dimensions (W×D×H)
- 1760 x 580 x 1538 mm mm
- Packed dimensions (W×D×H)
- 1905 x 780 x 2090 mm mm
- Shelf dimensions
- 551 x 470 mm ; 624 x 470 mm mm
- Volume
- 1563 L
- Net weight
- 305.0 kg
Temperature & refrigeration
- Min temperature
- -18.0°C
- Max temperature
- -22.0°C
- Max ambient temperature
- +25°C, 60% RH
- Refrigerant
- R290
- Cooling type
- Ventilated
- Defrost type
- Automatic
- Climate class
- 3
Energy & electrical
- Electric power
- 1280 kW
- Electric power
- 1280 W W
- Voltage / frequency
- 220-240/50 V/Hz
- Energy class
- D
- Energy consumption (24h)
- 23.84 kWh/24h kWh
- Annual energy consumption
- 8702 kWh/year kWh
- Energy efficiency index
- 45.3 %
- EPREL number
- 1556645.0
Construction & design
- Control type
- Electronic
- Doors
- 3 hinged glass doors
- Shelves
- 15 adjustable
- Max shelf load
- 140 kg/m² kg
- Castors
- 6 castors
- Door lock
- Yes
- Interior lighting
- LED
- Thermometer
- Yes
- Noise level
- 70 dB(A) dB
Materials & finish
- Exterior finish
- Black RAL9005
- Interior finish
- White RAL9003
Delivery
Delivery
Logistics & shipping
- Gross weight
- 355.0 kg
- Dispatch
- 1–4 working days
- Collect from our Riga store
- Ready within 1–4 working days
Origin & customs
- EAN
- 5708181727017.0
