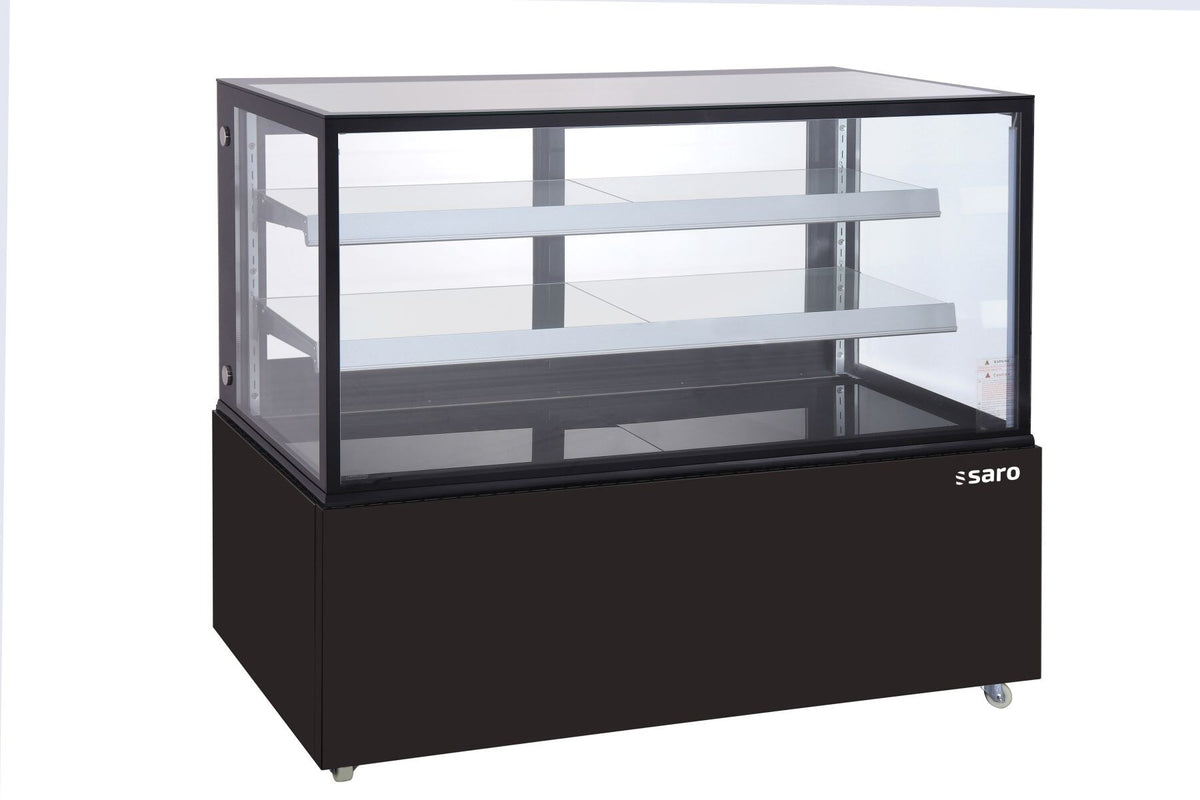

The Saro VANESSA AV is a black powder-coated cake display cabinet for cafes, bakeries, patisseries, hotels, buffet areas and retail environments, with a 510 litre gross capacity (293.1 litres net) across two adjustable glass shelves measuring 1370 x 311 mm on top and 1370 x 371 mm on the bottom. LED lighting runs per glass shelf and at the base, and an air duct outside the glass drains condensation to keep the display clear. Double glazing covers all four sides, with a 2-part sliding door at the back.
The cabinet is rated for climate class 4, with digital temperature control, fan cooling and automatic defrost holding +2 to +8 °C. Connection is 220 to 240 V, 50 Hz, 0.550 kW with R290 refrigerant. Internal dimensions are 1440 x 585 x 640 mm and external dimensions 1500 x 680 x 1200 mm including the four castors, two of which lock; net weight is 179 kg.
Tehnilised andmed
Tehnilised andmed
Füüsilised mõõtmed
- Välismõõtmed (L×S×K)
- 1500 x 680 x 1200 mm
- Sisemõõtmed (L×S×K)
- 1440 x 585 x 640 mm
- Riiuli mõõtmed
- Top 1370 x 311, bottom 1370 x 371 mm
- Maht
- 510 L
- Netokaal
- 179 kg
Temperatuur ja jahutus
- Minimaalne temperatuur
- 2°C
- Maksimaalne temperatuur
- 8°C
- Külmutusaine
- R290
- Jahutustüüp
- Fan cooling
- Sulatusviis
- Automatic
- Kliimaklass
- 4
Energeetika ja elektrotehnika
- Elektrienergia
- 0.550 kW
- Pinge / sagedus
- 220-240 V / 50 Hz
- Energiaklass
- C
Ehitus ja projekteerimine
- Seadme tüüp
- Cake display cabinet
- Tüüpkonstruktsioon
- Double glazing on 4 sides, 2-part sliding door at the back, air duct outside the glass for condensation drainage
- Juhtimise tüüp
- Digital temperature control
- Uksed
- 2-part sliding door, rear
- Riiulid
- 2 adjustable glass shelves
- Kobrasid
- 4 castors, 2 lockable
- Sisustusvalgustus
- LED per glass shelf and bottom
Materjalid ja viimistlus
- Materjalid
- Black powder-coated steel housing
Toote üksikasjad
- Kasutuseesmärk
- Chilled display of cakes, gateaux, desserts and pastries in cafes, bakeries, patisseries, hotels, buffet areas and retail environments
Garantii
Garantii
- Garantiiaeg (kuud)
- 24 kuud
Kohaletoimetamine
Kohaletoimetamine
Logistika ja saatmine
- Brutokaal
- 228.5 kg
Päritolu ja tavad
- Päritoluriik
- CN
- Tollitariifinumber
- 8418501990
- Euroopa tootenumber
- 4017337072804
