REDFOX

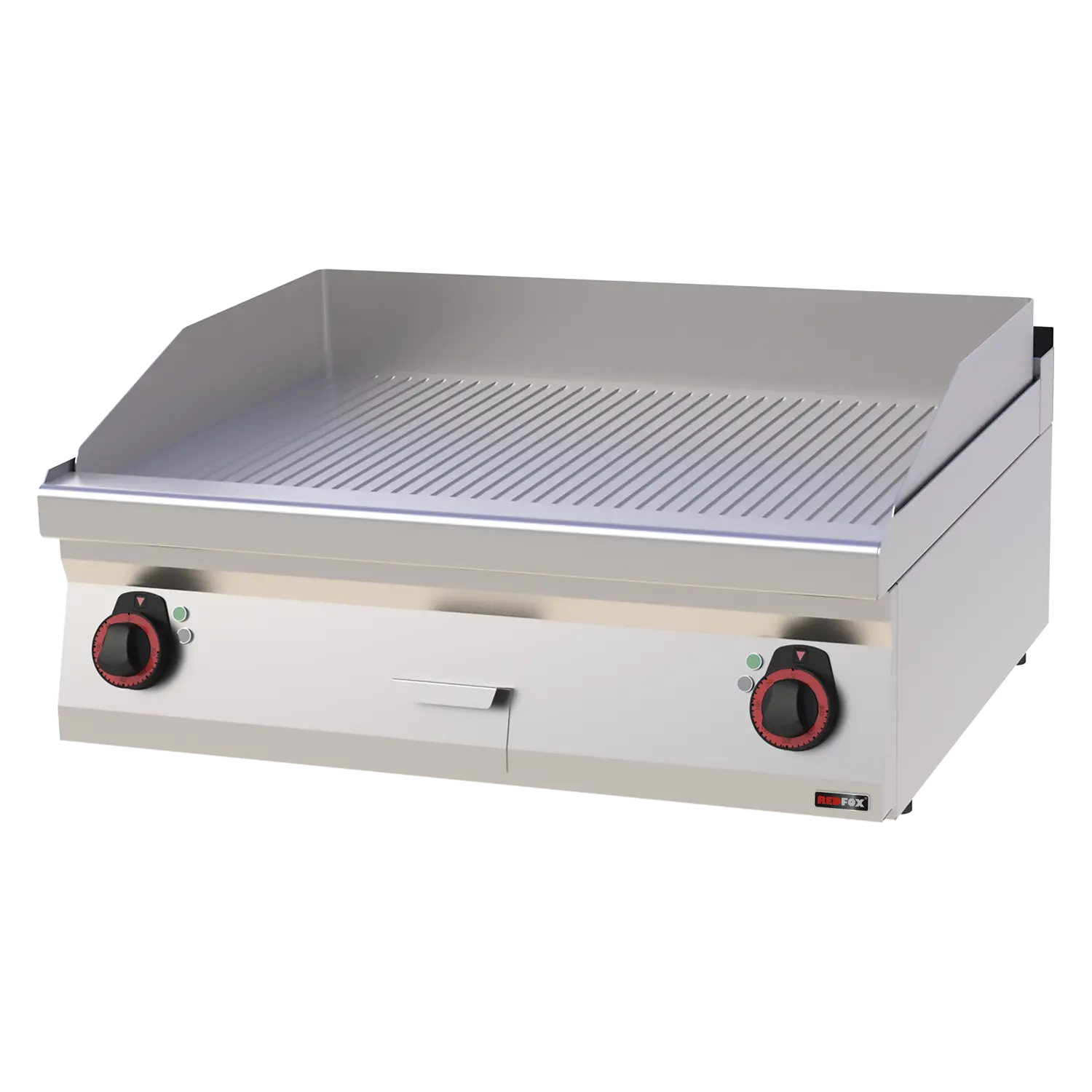

Fry-top griddle plate 80x51 electric grooved without cabinet 400 V
Fry-top griddle plate 80x51 electric grooved without cabinet 400 V
FTR 70/08 E
Fry-top griddle plate 80x51 electric grooved without cabinet 400 V | REDFOX - FTR 70/08 E
1000 in stock
Prices shown exclude tax. Your final total is confirmed at checkout.
Couldn't load pickup availability
Description
Description
Net Width [mm]: 800
Net Depth [mm]: 700
Net Height [mm]: 330
Net Weight [kg]: 66.00
Gross Width [mm]: 840
Gross depth [mm]: 800
Gross Height [mm]: 390
Gross Weight [kg]: 78.00
Device type: Electric unit
Construction type of device: Table top
Power electric [kW]: 9.000
Loading: 400 V / 3N - 50 Hz
Protection of controls: IPX4
Material: AISI 304 top plate, AISI 430 cladding
Indicators: operation and warm-up
Worktop material: Sandblasted steel
Worktop Thickness [mm]: 1.20
Surface finish: sandblasted surface without coating
Maximum device temperature [°C]: 300
Minimum device temperature [°C]: 50
Service accessibility: Trough the frontal panel
Safety thermostat: Yes
Adjustable feet: Yes
Griddle dimensions [mm x mm]: 800 x 510
Griddle thickness [mm]: 12.00
Container for liquid fat: Yes
Independent heating zones: Separate control for each heating zone
Removable rim: Yes
Top type: Grooved
Cross-section of conductors CU [mm²]: 2
Specifications
Specifications
Physical dimensions
- External dimensions (W×D×H)
- 800 x 700 x 330 mm mm
- Packed dimensions (W×D×H)
- 840 x 800 x 390 mm
- Net weight
- 66.0 kg
Temperature & refrigeration
- Min temperature
- 50.0°C
- Max temperature
- 300°C
Energy & electrical
- Electric power
- 9 kW
- Voltage / frequency
- 400 V / 3N - 50 Hz
Construction & design
- Device type
- Electric unit
- Construction type
- Table top
Materials & finish
- Material
- AISI 304 top plate, AISI 430 cladding
- Interior finish
- AISI 304 top plate, AISI 430 cladding
- Worktop material
- Sandblasted steel
Cooking & heating
- Protection controls
- IPX4
- Service accessibility
- Trough the frontal panel
Delivery
Delivery
Logistics & shipping
- Gross weight
- 78.0 kg
