Apraksts

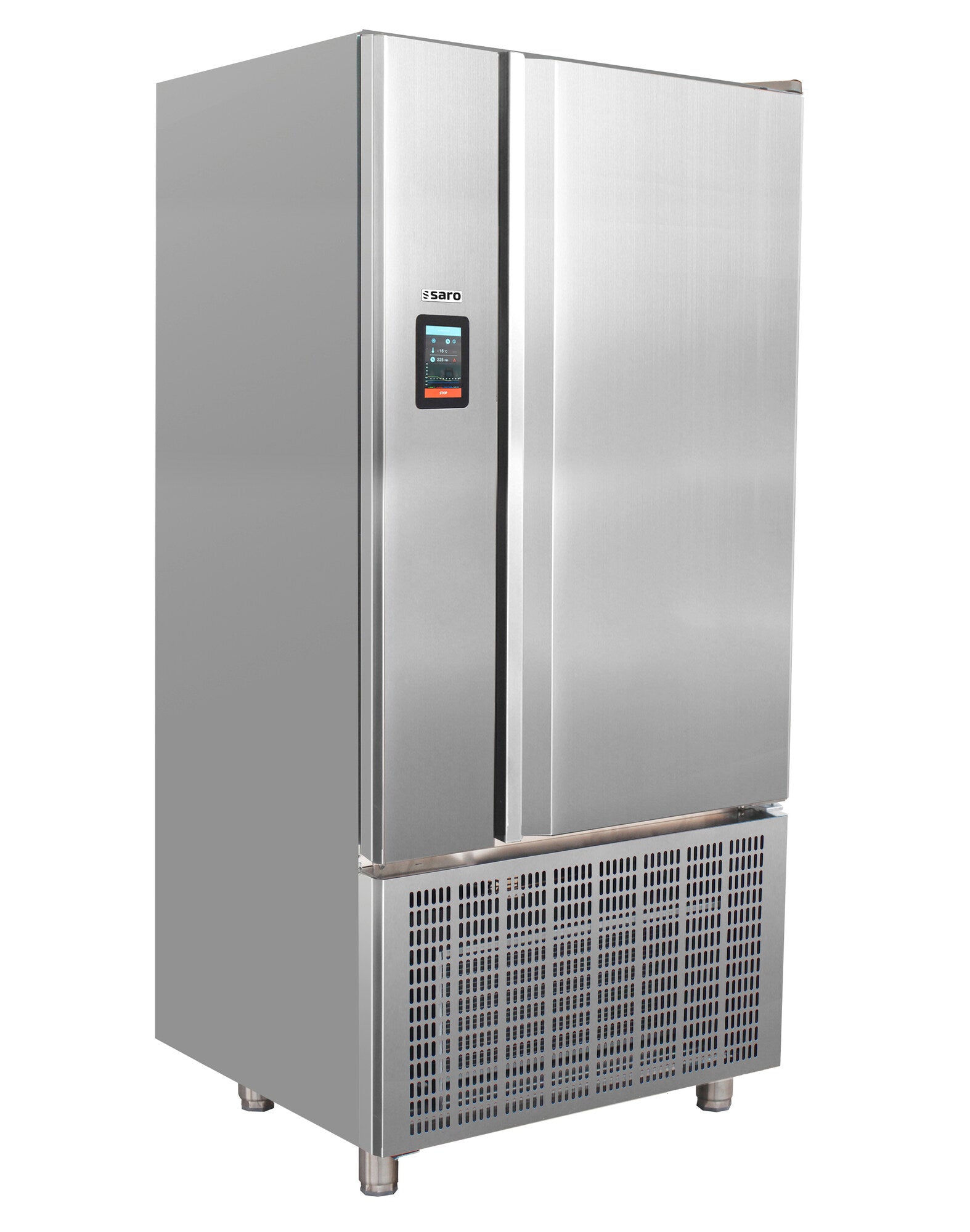

The Saro ODIN 15 is a blast chiller and shock freezer for restaurants, commercial kitchens, catering operations and food production. It takes 15 x 1/1 GN containers. Trays measuring 600 x 400 mm fit as well. It is operated from a programmable touch display, with four preset temperature levels, a core temperature probe and an EVCO thermostat. Rapid chilling takes food from 65 to 10 °C in 113.5 minutes at up to 55 kg per tray, and shock freezing takes it from 65 to -18 °C in 190 minutes at up to 38 kg.
Housing and interior are stainless steel, the base is galvanised steel, and defrost is automatic with hot gas; refrigeration is forced-air, refrigerant R290, connection 400 V, 50/60 Hz, 3 phase, 2 kW. External dimensions are 800 x 873 x 1950 mm on four height-adjustable feet (110 to 170 mm), internal dimensions 440 x 695 x 1170 mm, capacity 494 litres gross and 280 litres net, net weight 210 kg. The more compact ODIN 10 can be selected above.
Specifikācija
Specifikācija
Fiziskie izmēri
- Ārējie izmēri (P × P × A)
- 800 x 873 x 1950 mm
- Iekšējie izmēri (P × G × A)
- 440 x 695 x 1170 mm
- Apjoms
- 280 L
- Neto svars
- 210 kg
Temperatūra un dzesēšana
- Aukstumaģents
- R290
- Dzesēšanas veids
- Forced-air cooling
- Atkausēšanas veids
- Automatic, hot gas
Enerģija un elektrība
- Elektriskā jauda
- 2 kW
- Spriegums / frekvence
- 400 V / 50/60 Hz / 3 Ph
Būvniecība un dizains
- Ierīces veids
- Blast chiller / shock freezer
- Kontroles veids
- Programmable touch display, EVCO thermostat
- GN izmērs
- 1/1 GN
- GN jauda
- 15
- Pēdas / kājas
- 4 height-adjustable feet, 110-170 mm
Materiāli un apdare
- Materiāls
- Stainless steel housing and interior, galvanised steel base
Garantija
Garantija
- Garantijas periods (mēneši)
- 24 mēneši
Piegāde
Piegāde
Loģistika un piegāde
- Bruto svars
- 226 kg
Izcelsme un paražas
- Izcelsmes valsts
- CN
- Muitas tarifu numurs
- 8418102099
- EAN
- 4017337071128
Dokumenti un sertifikāti
Dokumenti un sertifikāti
Dokumenti
Sertifikāti
- Sertifikāti
- CE, RoHS
